A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
Implement a robust power-on reset circuit, ensure a stable input voltage, and follow the recommended operating conditions. Also, consider using a thermistor or thermocouple to monitor the device temperature.
Use a shielded enclosure, ensure proper grounding, and follow good PCB layout practices. Implement EMI filters on the input and output lines, and consider using a common-mode choke to reduce emissions.
Use a combination of capacitors with different values and types (e.g., ceramic, electrolytic, and film) to achieve a low-ESR output filter. Ensure the filter components are placed close to the output pins to minimize parasitic inductance.
Monitor the output voltage, current, and temperature during production testing. Verify the device's functionality, including the enable pin, soft-start, and overcurrent protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV52117QATXG Overview

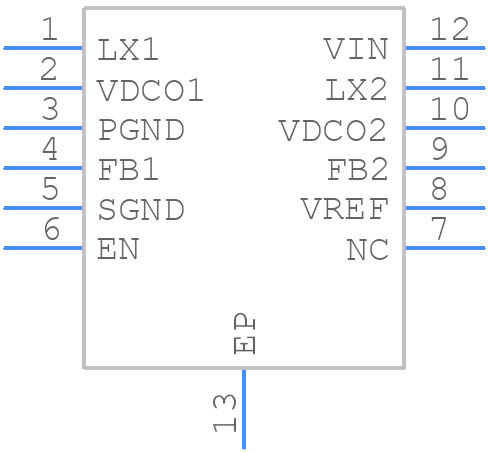

Use the download button to access the LV52117QATXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV521,
or try a keyword search, such as Switching Regulator or Controllers
