LV8400V-TLM-E footprint, schematic symbol and 3D model by onsemi

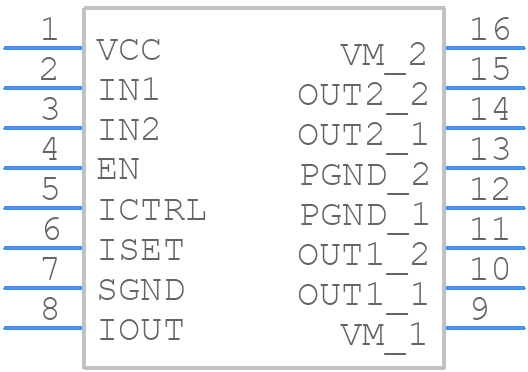

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LV8400V-TLM-E
Part Number LV8400V-TLM-E
Manufacturer onsemi
Pin Count 16
Part Category Undefined or Miscellaneous
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SSOP16
Released Date Sep 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LV8400V-TLM-E Details

Manufacturer Part Number:
LV8400V-TLM-E
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
SOIC
Package Description:
0.225 INCH, LEAD FREE, SSOP-16
Pin Count:
16
Manufacturer Package Code:
565AM
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Analog IC - Other Type:
3-PHASE BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e6
Length:
5.2 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Output Current-Max:
3.8 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
LSSOP
Package Equivalence Code:
SSOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.5 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
OTHER
Terminal Finish:
Tin/Bismuth (Sn/Bi)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm

LV8400V-TLM-E Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the input power.
Ensure good thermal management by providing adequate heat sinking and airflow. Use a thermal interface material (TIM) between the device and the heat sink. Monitor the junction temperature (TJ) and ensure it stays within the recommended range.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 25V.
Use an oscilloscope to monitor the input and output voltages, and check for any signs of oscillation or noise. Verify that the input voltage is within the recommended range and that the device is properly heatsinked. Check the PCB layout for any signs of noise coupling or electromagnetic interference (EMI).
Yes, the LV8400V-TLM-E can be used in a redundant or parallel configuration to achieve higher power output. However, ensure that the devices are properly synchronized and that the output voltages are matched to prevent current imbalance.

Trust Checks

Community Provided

System Verified

Community Approved

LV8400V-TLM-E Overview

Use the download button to access the LV8400V-TLM-E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LV840, or try a keyword search, such as Motion Control Electronics
