A good PCB layout for the LV8401V-TLM-E involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range, use a suitable thermal interface material, and provide adequate heat sinking. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal protection mechanisms.
To minimize EMI and EMC issues, use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters or chokes on the input and output lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
Yes, the LV8401V-TLM-E can be used in redundant or fault-tolerant systems. However, it's essential to ensure that the device is properly synchronized and that the system is designed to handle the failure of one or more devices. Consult the datasheet and application notes for specific guidance on implementing redundancy and fault tolerance.
To troubleshoot issues with the LV8401V-TLM-E, start by consulting the datasheet and application notes. Check the device's operating conditions, input and output voltages, and current consumption. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, contact onsemi's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV8401V-TLM-E Overview

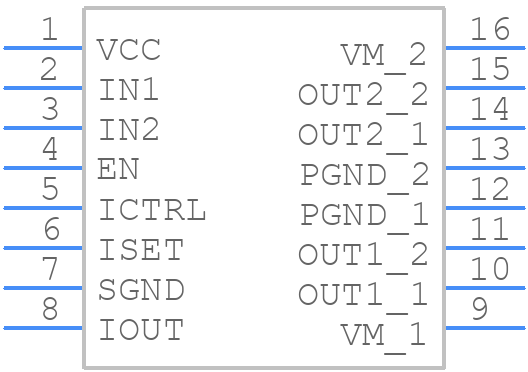

Use the download button to access the LV8401V-TLM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV840,
or try a keyword search, such as Motion Control Electronics
