LV8712T-TLM-H - onsemi

Description: ON Semiconductor LV8712T-TLM-H, Stepper Motor Driver IC, 16 V 0.8A 24-Pin, TSSOP

Download LV8712T-TLM-H Model
Schematic

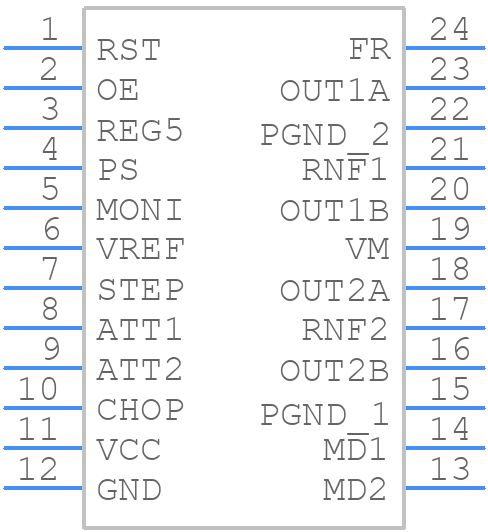

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LV8712T-TLM-H - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24 4.4x6.5 / TSSOP24 (225 mil) CASE 948BA ISSUE A
click to zoom
3D Models
LV8712T-TLM-H - onsemi  - 3D model - Small Outline Packages - TSSOP24 4.4x6.5 / TSSOP24 (225 mil) CASE 948BA ISSUE A
click to zoom

LV8712T-TLM-H Details

  • Manufacturer Part Number:

    LV8712T-TLM-H

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    24

  • Manufacturer Package Code:

    948BA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    1.7 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
