LV8727-E - onsemi

Description: ON Semiconductor LV8727-E, Stepper Stepper Motor Controller IC 25-Pin, HZIP

Download LV8727-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

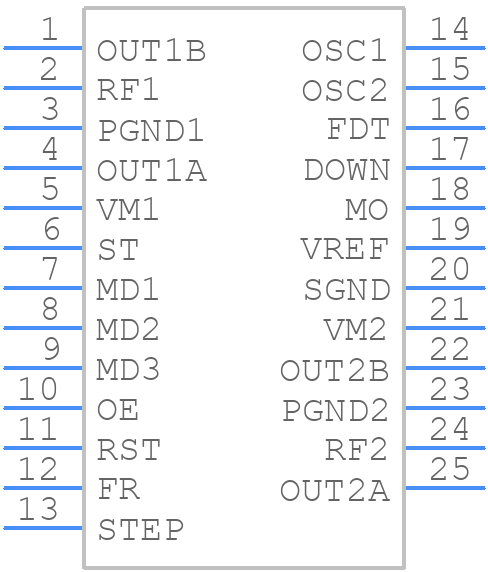

LV8727-E - onsemi - PCB symbol
click to zoom
PCB Footprints

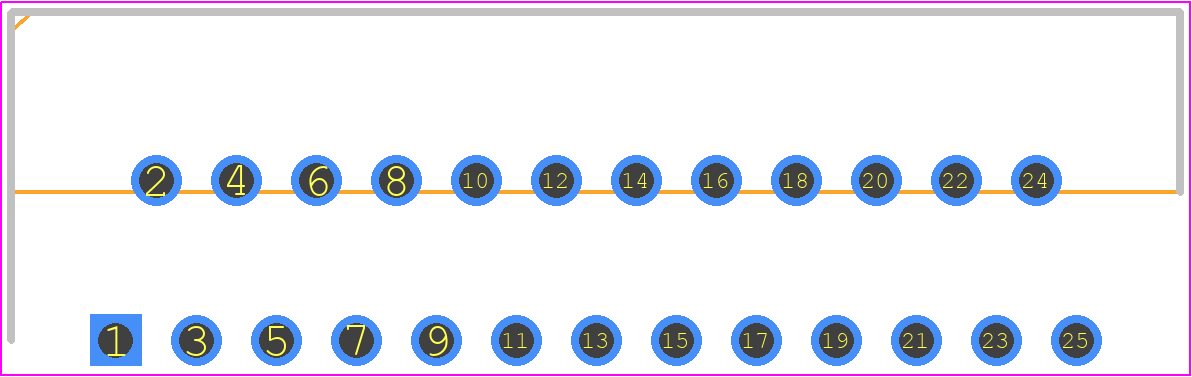

LV8727-E - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - HZIP25
click to zoom
3D Models
LV8727-E - onsemi - 3D model - Transistor Outline, Vertical - HZIP25
click to zoom

LV8727-E Details

  • Manufacturer Part Number:

    LV8727-E

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    36

  • Manufacturer Package Code:

    945AD

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PZIP-T25

  • JESD-609 Code:

    e6

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    ZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    4.9 mA

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG
