For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the exposed pad of the LV8761V-TLM-E to the ground plane. Additionally, keeping the PCB traces and components away from the device's thermal pad can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and thermal design guidelines. This includes providing adequate heat sinking, using a suitable thermal interface material, and ensuring that the device is operated within its specified temperature range.
Operating the LV8761V-TLM-E at a lower input voltage than the recommended 12V may affect its performance and efficiency. The device may not be able to deliver its full output power, and its line and load regulation may be compromised. It is recommended to operate the device within its specified input voltage range for optimal performance.
To troubleshoot issues with the OCP feature, check the input voltage, output current, and sense resistor values to ensure they are within the specified ranges. Also, verify that the OCP threshold is set correctly and that the device is not overheating. If the issue persists, consult the datasheet and application notes for further guidance.
To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, ensure that the device is operated within its specified frequency range and that the output voltage is properly filtered.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV8761V-TLM-E Overview

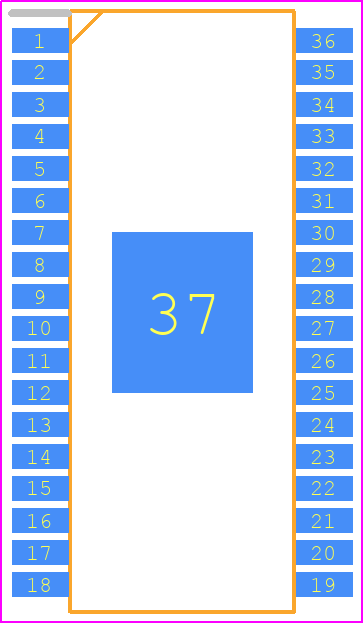

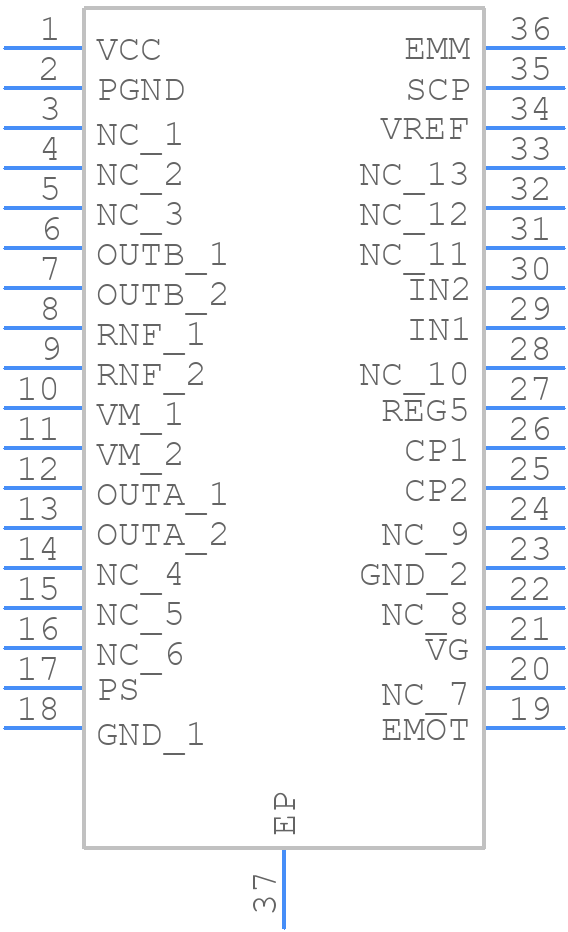

Use the download button to access the LV8761V-TLM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV876,
or try a keyword search, such as Motion Control Electronics
