A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, it's recommended to have a minimum of 2oz copper thickness and to use a thermal relief pattern around the device.
To ensure reliable operation in high-temperature environments, it's recommended to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
The recommended input and output capacitors for the LV88551JA-AH are 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 25V or higher. The capacitors should be placed as close to the device as possible to minimize parasitic inductance.
To troubleshoot issues with the device not turning on or not regulating properly, check the input voltage, output voltage, and enable pin voltage to ensure they are within the recommended operating conditions. Also, verify that the input and output capacitors are properly connected and meet the recommended specifications. If the issue persists, check for any signs of overheating or damage to the device.
The recommended EMI filtering for the LV88551JA-AH includes using a common-mode choke and a differential-mode filter capacitor at the input, and a ferrite bead or RC filter at the output. The specific component values and configurations may vary depending on the application and system requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV88551JA-AH Overview

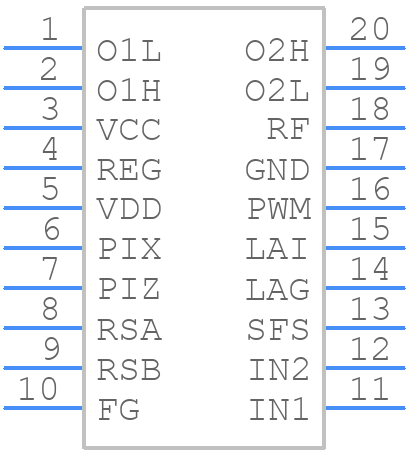

Use the download button to access the LV88551JA-AH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV885,
or try a keyword search, such as Motion Control Electronics
