LVA-123+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 10 - 12000 MHz, 50 ohms

Download LVA-123+ Model

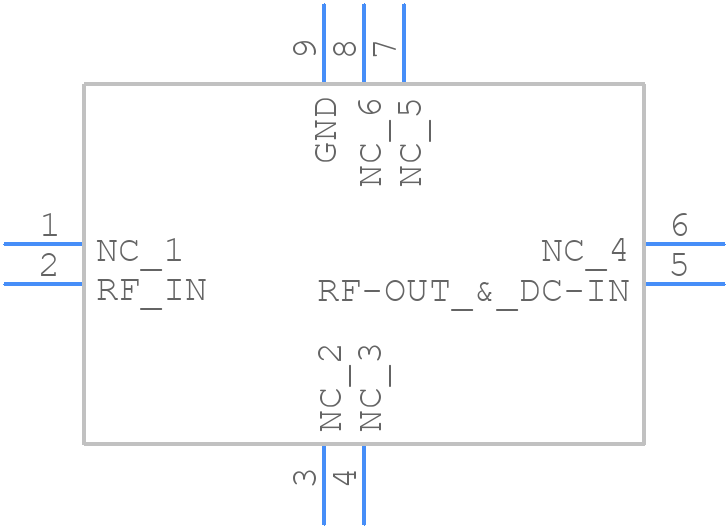

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LVA-123+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ849 (T=0.992mm)
click to zoom
3D Models
LVA-123+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - DQ849 (T=0.992mm)
click to zoom

LVA-123+ Details

  • Manufacturer Part Number:

    LVA-123+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-03-08

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.27

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    15.6 dB

  • Input Power-Max (CW):

    11 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

LVA-123+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, a power plane on the second layer, and signal traces on the top and third layers. This layout helps to minimize noise and ensure optimal performance.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet, and make sure the voltage supply is well-regulated and decoupled. Additionally, use a low-ESR capacitor for the biasing circuit to minimize noise and ensure optimal linearity.
  • The LVA-123+ can handle input powers up to +20 dBm without damage. However, it's recommended to operate the device at input powers below +15 dBm to ensure optimal performance and minimize the risk of damage.
  • To troubleshoot common issues, start by checking the PCB layout and ensuring that it follows the recommended layout guidelines. Next, verify that the biasing circuit is properly implemented and that the voltage supply is well-regulated. If the issue persists, try adding additional decoupling capacitors or modifying the PCB layout to reduce noise and improve stability.
  • Yes, the LVA-123+ can be used in a push-pull configuration to improve performance. However, this requires careful design and layout consideration to ensure that the two devices are properly matched and biased. Consult the datasheet and application notes for more information on push-pull configuration.
