LVA-273PN+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 0.01 - 26.5 GHz, 50?

Download LVA-273PN+ Model

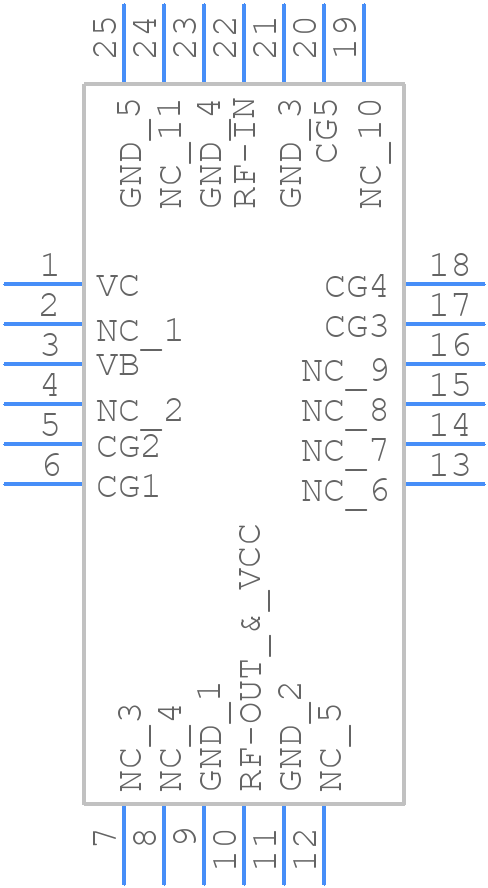

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LVA-273PN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
LVA-273PN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

LVA-273PN+ Details

  • Manufacturer Part Number:

    LVA-273PN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    8

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17.9 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -45 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    150 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • VSWR-Max:

    1.28

LVA-273PN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the amplifier. A low-inductance path to ground is crucial for optimal performance. Refer to the application note AN-60-014 for more details.
  • The LVA-273PN+ is a fixed-gain amplifier and does not require external biasing. However, it's essential to ensure the power supply voltage is within the recommended range (5V to 12V) and the input signal is within the recommended input power range (-20 dBm to 10 dBm).
  • The LVA-273PN+ can handle up to 15 dBm of input power without damage. However, exceeding the recommended input power range may lead to reduced performance, increased distortion, or even damage to the amplifier.
  • No, the LVA-273PN+ is a single-ended amplifier and is not designed for push-pull configurations. Using it in a push-pull configuration may lead to reduced performance, increased distortion, or even damage to the amplifier.
  • The thermal resistance of the package is approximately 25°C/W. To ensure proper heat dissipation, it's recommended to use a heat sink or a thermal pad, and to keep the ambient temperature below 70°C. Refer to the application note AN-60-014 for more details.
