- Part Number LX2080XE72029B
- Manufacturer NXP
- Pin Count 1517
- Part Category Integrated Circuit
- Package Category BGA

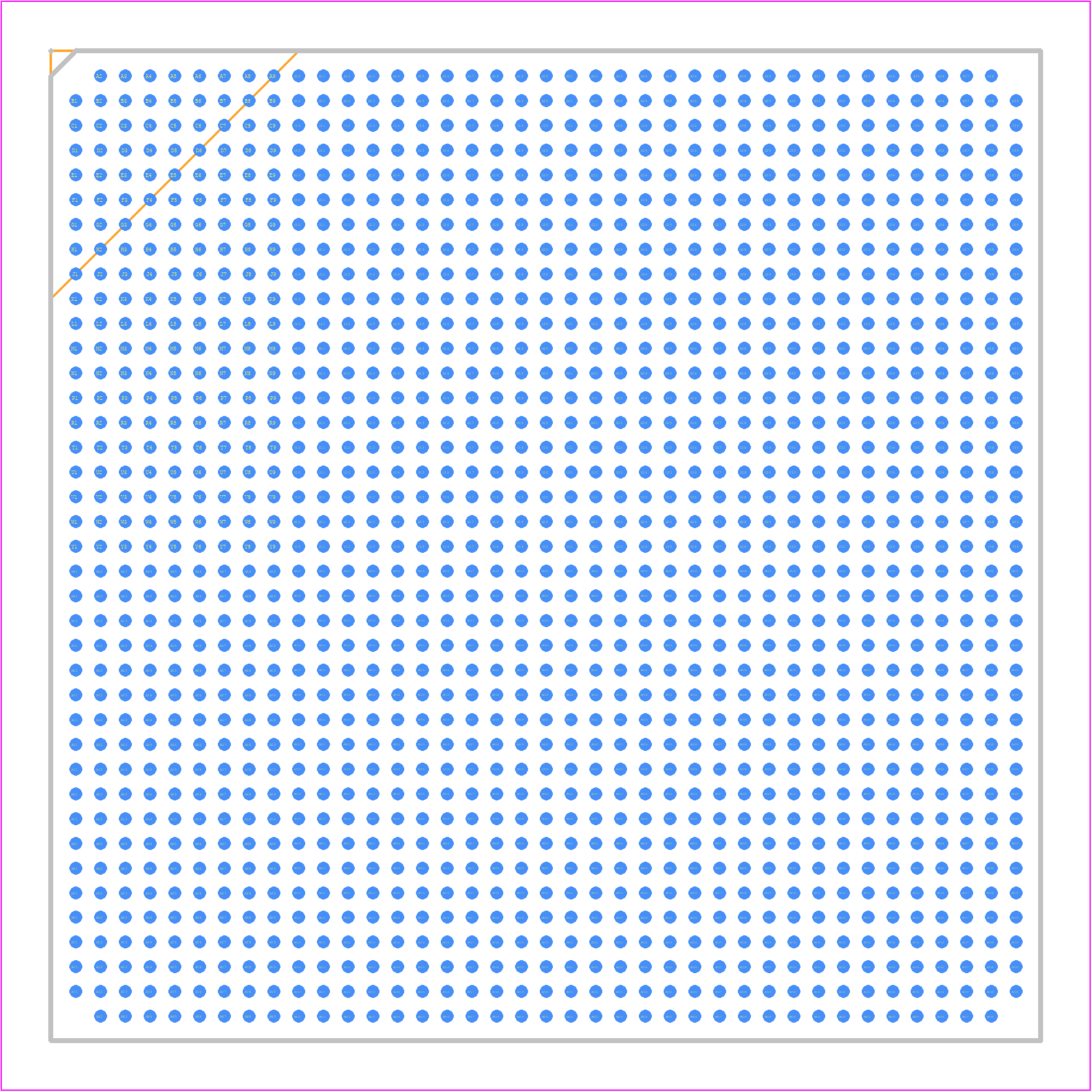

- Footprint Name BGA - FCBGA 1517
- Released Date Mar 2, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LX2080XE72029B Details
-
Manufacturer Part Number:
LX2080XE72029B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A002.A.1
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
26 Weeks
-
Date Of Intro:
2020-07-20
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
9
-
Moisture Sensitivity Level:
3
-
Peak Reflow Temperature (Cel):
245
LX2080XE72029B Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout and thermal management guide in their application note AN11542. It's essential to follow these guidelines to ensure proper heat dissipation and minimize electromagnetic interference (EMI).
-
To achieve optimal power efficiency, configure the device to operate in the lowest possible power mode suitable for your application. Use the Power Management Interface (PMI) to control the power modes, and adjust the clock frequency and voltage settings accordingly. Refer to the datasheet and application notes for specific guidance.
-
The built-in voltage regulators have limitations on output current, voltage range, and power dissipation. Ensure that your design stays within these limits to avoid overheating, voltage drops, or other issues. Consult the datasheet and application notes for specific details on the voltage regulators' capabilities.
-
To troubleshoot boot process issues, use the built-in debug features, such as the Serial Wire Debug (SWD) interface, and analyze the boot logs. Check the boot mode configuration, ensure the correct boot loader is used, and verify the integrity of the firmware image. Consult the datasheet, application notes, and NXP's support resources for guidance.
-
The LX2080XE72029B has various security features, including secure boot, TrustZone, and cryptographic accelerators. Implement these features by following NXP's security guidelines, using the Secure Boot Loader, and integrating the necessary security protocols into your firmware. Consult the datasheet, application notes, and NXP's security documentation for detailed information.
