LX2160XE72232B - NXP

Description: Microprocessors - MPU Layerscape 64-bit Arm Cortex-A72, 16-core, 2.2GHz, -40 to 105C, Security enabled

Download LX2160XE72232B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LX2160XE72232B - NXP - PCB symbol
click to zoom
PCB Footprints

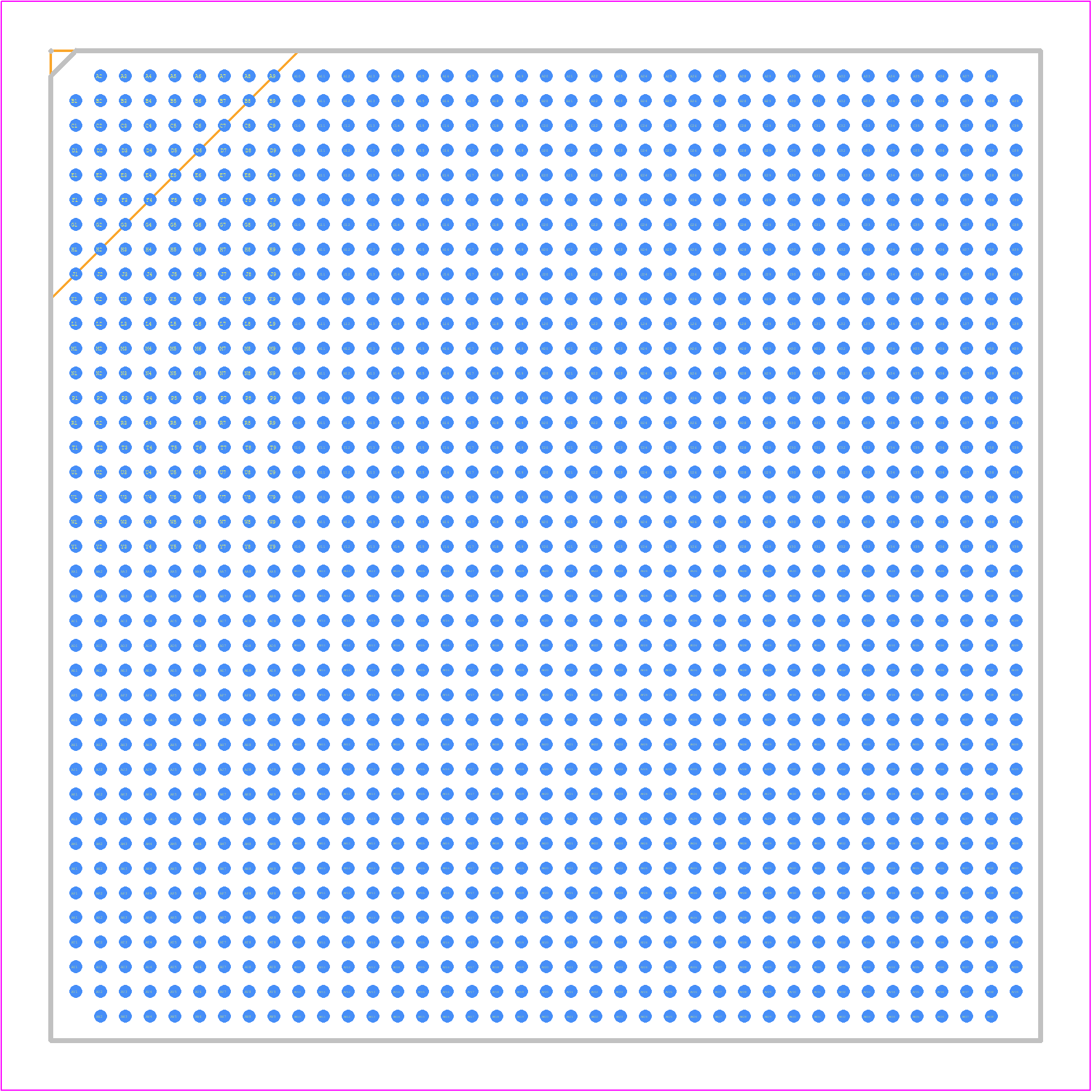

LX2160XE72232B - NXP PCB footprint - BGA - BGA - FCBGA 1517
click to zoom
3D Models
LX2160XE72232B - NXP - 3D model - BGA - FCBGA 1517
click to zoom

LX2160XE72232B Details

  • Manufacturer Part Number:

    LX2160XE72232B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks

  • Date Of Intro:

    2020-07-20

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    245

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    SoC

LX2160XE72232B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_IO). This ensures that the internal voltage regulators are properly enabled and stabilized before the I/Os are powered up.
  • To optimize the DDR memory interface, ensure that the DDR clock frequency is set to the recommended value, and the DDR voltage (VDD_DDR) is set to the specified range. Additionally, adjust the DDR timing parameters, such as the CAS latency and RAS-to-CAS delay, to optimize memory access times.
  • The maximum operating temperature range for the LX2160XE72232B is -40°C to 105°C. However, it's recommended to operate the device within the recommended temperature range of 0°C to 90°C for optimal performance and reliability.
  • To configure the PCIe interface for optimal performance, ensure that the PCIe clock frequency is set to the recommended value, and the PCIe link width is set to the desired value (x1, x2, x4, or x8). Additionally, adjust the PCIe timing parameters, such as the PCIe clock skew and jitter, to optimize data transfer rates.
  • The recommended method for firmware updates and bootloading is to use the Secure Boot mechanism, which ensures the authenticity and integrity of the firmware. Additionally, use a secure boot loader, such as U-Boot, to load the firmware and ensure a secure boot process.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LX2160XE72232B Overview

Use the download button to access the LX2160XE72232B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX216, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
