A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the device and use short, wide traces for the power lines.
Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal design and layout techniques to minimize thermal resistance.
Exceeding the maximum junction temperature can lead to reduced lifespan, decreased performance, and potentially catastrophic failure. Ensure proper thermal management and cooling to prevent overheating.
Yes, the LX3302QPW-TR is designed for high-reliability applications. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device meets the required reliability standards.
Use a systematic approach to troubleshoot, starting with a review of the schematic, PCB layout, and component selection. Check for proper power sequencing, decoupling, and filtering. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LX3302QPW-TR Overview

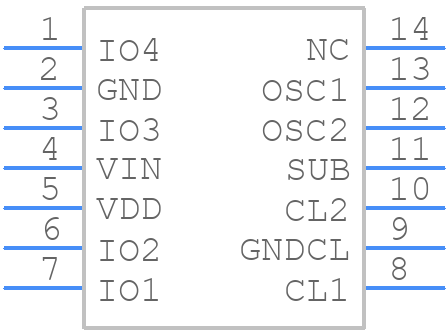

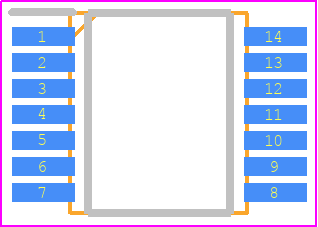

Use the download button to access the LX3302QPW-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX330,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
