A good PCB layout for the LX5563LL-TR involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence, which is VCC first, then VDD, and finally the input signals. Also, ensure that the input signals are stable and within the recommended voltage range before applying power to the device.
The LX5563LL-TR has a maximum junction temperature of 150°C. To manage thermal performance, use a heat sink or thermal pad, and ensure good airflow around the device. Also, avoid overheating the device during soldering or rework operations.
To troubleshoot issues with the LX5563LL-TR, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered up and initialized. Check for any signs of overheating, and ensure that the PCB layout and component selection meet the recommended specifications.
Yes, the LX5563LL-TR is a high-frequency device and requires proper EMI/EMC design considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Ensure that the PCB layout and component selection meet the recommended specifications for EMI/EMC performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LX5563LL-TR Overview

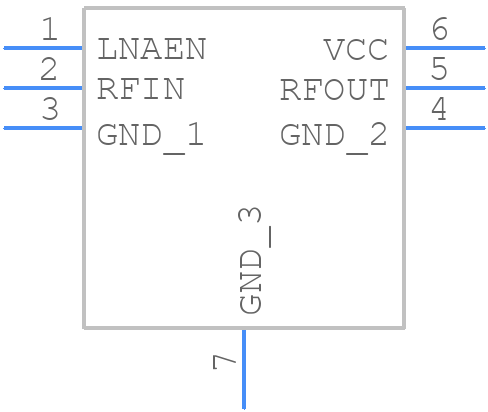

Use the download button to access the LX5563LL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX556,
or try a keyword search, such as RF/Microwave Amplifiers
