LX5591LQ-TR - Microchip

Description: RF Front End 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz 802.11n/ac

Download LX5591LQ-TR Model

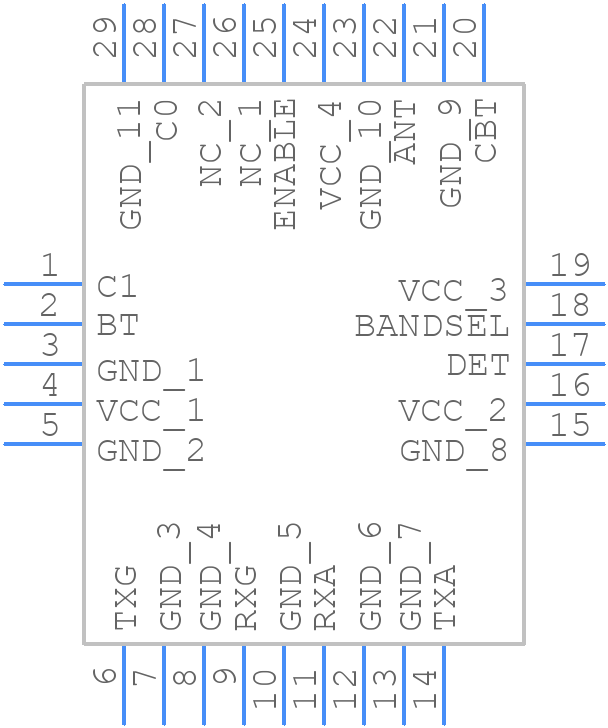

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LX5591LQ-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-28, 3x4×0.9mm
click to zoom
3D Models
LX5591LQ-TR - Microchip  - 3D model - Quad Flat No-Lead - QFN-28, 3x4×0.9mm
click to zoom

LX5591LQ-TR Details

  • Manufacturer Part Number:

    LX5591LQ-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XQCC-N28

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LX5591LQ-TR Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the LX5591LQ-TR evaluation board user's guide, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and noise.
  • To optimize power supply noise rejection, ensure that the input capacitors (CIN) are placed close to the device, and the output capacitors (COUT) are placed close to the load. Additionally, use a low-ESR capacitor for COUT and a high-quality, low-noise power supply.
  • The maximum output current capability of LX5591LQ-TR is 1.5A, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance to ensure reliable operation.
  • The LX5591LQ-TR has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the device's internal current sense amplifier gain.
  • To ensure reliable operation, it's recommended to provide adequate thermal management for LX5591LQ-TR, such as using a heat sink, thermal vias, and thermal pads. The device's thermal performance can be estimated using Microchip's thermal modeling tools and guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LX5591LQ-TR Overview

Use the download button to access the LX5591LQ-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LX559, or try a keyword search, such as Cellular Telephone Circuits
