Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
Use Vicor's software development kit (SDK) and follow the application notes for configuration and programming. The SDK provides tools and examples for setting up the module's parameters and monitoring its operation.
Not using the recommended capacitors can lead to reduced performance, increased noise, and potential instability. The recommended capacitors are selected to ensure optimal filtering and decoupling, and their omission can compromise the module's operation.
Consult Vicor's troubleshooting guide and application notes for common issues and solutions. Also, use the module's built-in monitoring and diagnostic features to identify the root cause of the problem.
Exceeding the maximum operating temperature range can lead to reduced performance, decreased lifespan, and potential damage to the module. Ensure proper thermal management and heat sinking to maintain the recommended operating temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
M-FIAM3H21 Overview

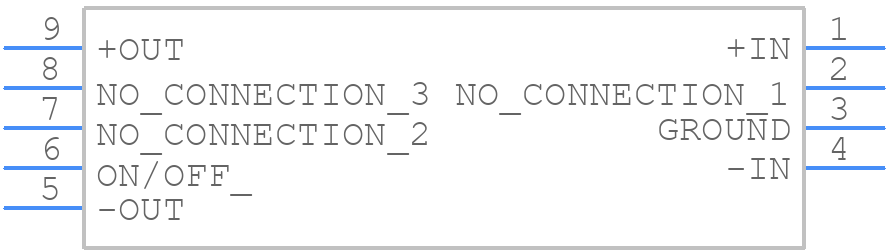

Use the download button to access the M-FIAM3H21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M-FIA,
or try a keyword search, such as Data Line Filters
