M-FIAM9H23 - VICOR

Description: Power Line Filters FIAM9 H M28 18A

Download M-FIAM9H23 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

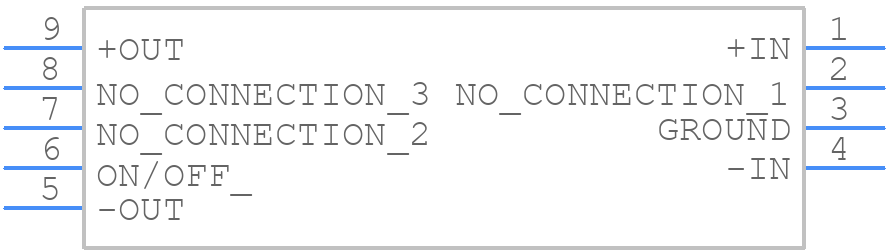

M-FIAM9H23 - VICOR - PCB symbol
click to zoom
PCB Footprints

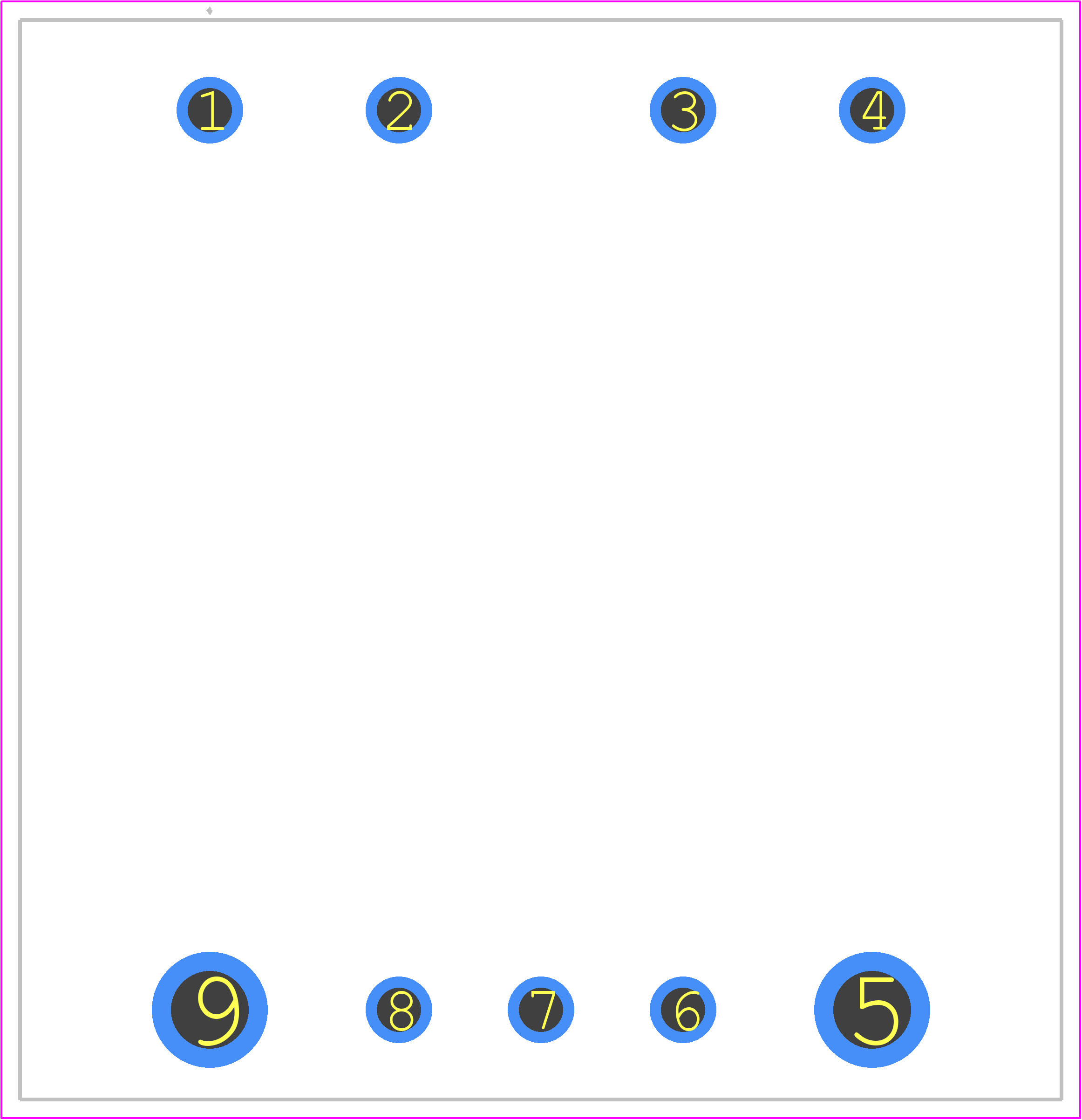

M-FIAM9H23 - VICOR PCB footprint - Other - Other - M-FIAM9H23-1
click to zoom
3D Models
M-FIAM9H23 - VICOR - 3D model - Other - M-FIAM9H23-1
click to zoom

M-FIAM9H23 Details

  • Manufacturer Part Number:

    M-FIAM9H23

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.6

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    13.5 mm

  • Length:

    57.91 mm

  • Mounting Type:

    PANEL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Rated Current:

    18 A

  • Rated Voltage:

    36 V

  • Terminal Finish:

    TIN LEAD

  • Width:

    55.88 mm
