Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. Consult the application note for specific guidance.
Input voltage transients can affect the module's performance and reliability. Vicor recommends using input voltage filtering and transient protection to ensure the module operates within its specified input voltage range.
Optimization involves selecting the right output voltage, adjusting the output capacitance, and optimizing the input voltage range. Consult Vicor's application notes and technical support for guidance on optimizing the module for your specific application.
The module's power rating derates at high temperatures. Consult the datasheet for thermal derating curves and ensure the module operates within its specified temperature range to maintain reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M-FIAM9HG1 Overview

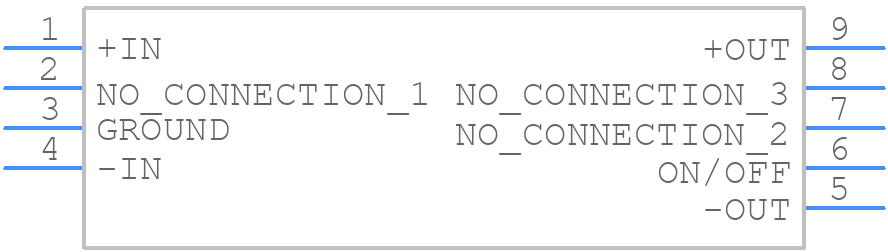

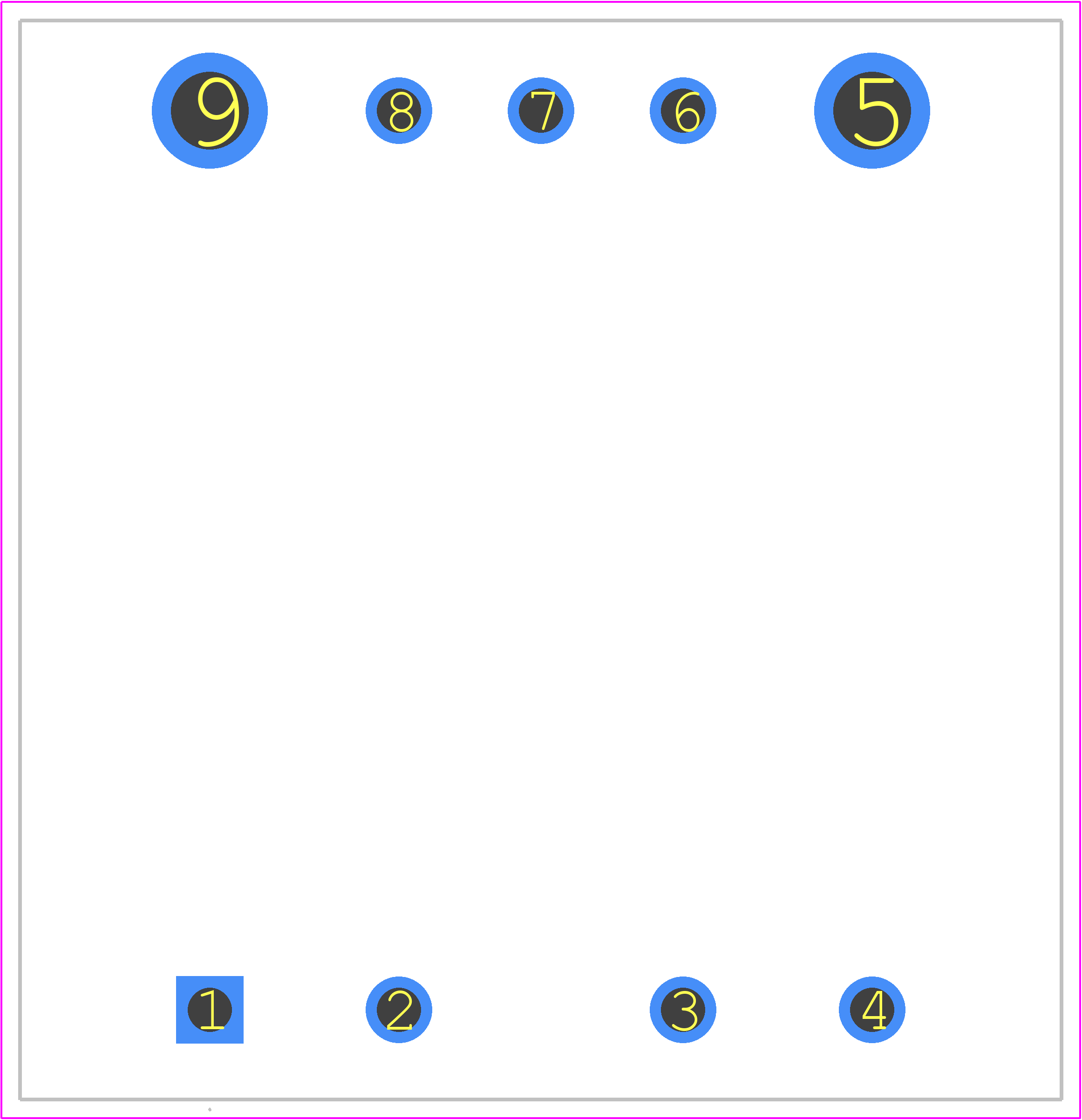

Use the download button to access the M-FIAM9HG1 schematic symbol, PCB footprint, and 3D model.
