M10162040108X0PSAY - Renesas Electronics

Description: The M1016204 series is a 16Mbit high performance non-volatile MRAM with speed up to 108MHz. The M1016204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M1016204 supports Quad SPI, SDR and DDR interface. It operates at 1.8V typical from  -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.

Download M10162040108X0PSAY Model
Schematic

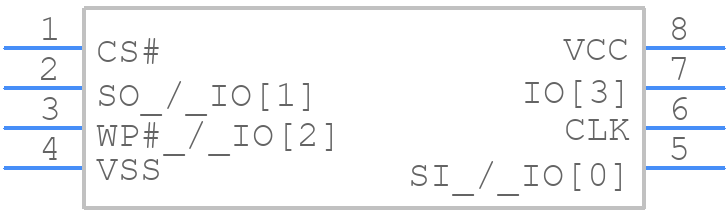

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M10162040108X0PSAY - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC-1
click to zoom
3D Models
M10162040108X0PSAY - Renesas Electronics  - 3D model - Small Outline Packages - 8-Pin SOIC-1
click to zoom

M10162040108X0PSAY Details

  • Manufacturer Part Number:

    M10162040108X0PSAY

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    PWG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

M10162040108X0PSAY Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for M10162040108X0PSAY is -40°C to 125°C, as specified in the datasheet.
  • The POR sequence for M10162040108X0PSAY is not explicitly stated in the datasheet. However, Renesas recommends following the general guidelines for power-on reset sequencing, which typically involve a slow and controlled voltage ramp-up to ensure proper device initialization.
  • The maximum allowed voltage on the input pins of M10162040108X0PSAY is VCC + 0.5V, as specified in the datasheet. Exceeding this voltage may cause damage to the device.
  • To implement a reliable clock signal for M10162040108X0PSAY, use a high-quality clock source with a stable frequency and amplitude. Ensure the clock signal meets the device's specified clock frequency and duty cycle requirements. Additionally, consider using a clock buffer or oscillator with a suitable jitter tolerance to minimize clock signal degradation.
  • The datasheet does not provide specific requirements for decoupling capacitors on the power supply pins of M10162040108X0PSAY. However, as a general guideline, use high-quality, low-ESR capacitors with a value of 0.1 μF to 1 μF, placed as close as possible to the power supply pins, to ensure proper power supply decoupling and noise reduction.
