M12A-04PFFP-SF8002 - Amphenol

Description: Circular Metric Connectors M12 PANEL PCB CONN 4PIN F CONN F PIN

Download M12A-04PFFP-SF8002 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12A-04PFFP-SF8002 - Amphenol - PCB symbol
click to zoom

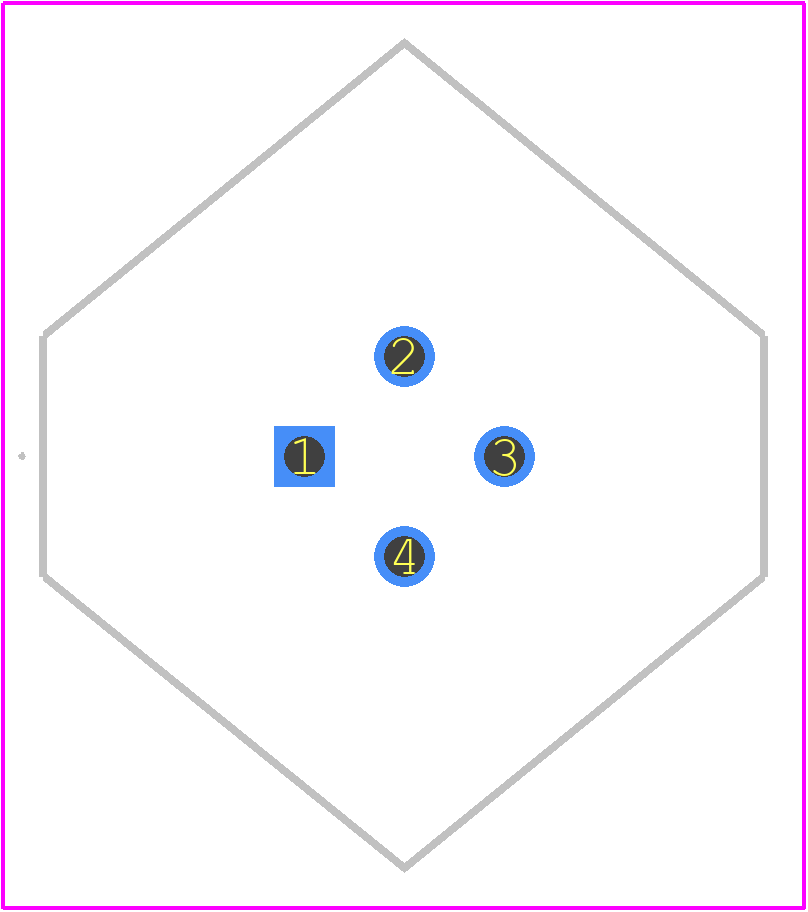

PCB Footprints
M12A-04PFFP-SF8002 - Amphenol PCB footprint - Other - Other - M12A-04PFFP-SF8002-2
click to zoom
3D Models
M12A-04PFFP-SF8002 - Amphenol - 3D model - Other - M12A-04PFFP-SF8002-2
click to zoom

M12A-04PFFP-SF8002 Details

  • Manufacturer Part Number:

    M12A-04PFFP-SF8002

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

M12A-04PFFP-SF8002 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the M12A-04PFFP-SF8002 connector, as specified by the IEC 61076-2-101 standard.
  • Yes, the M12A-04PFFP-SF8002 connector is designed for outdoor use and meets the IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • Yes, the M12A-04PFFP-SF8002 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G acceleration, and 3 axes, as per the IEC 60068-2-6 standard.
  • The M12A-04PFFP-SF8002 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of industrial and transportation applications.
  • Yes, the M12A-04PFFP-SF8002 connector is compatible with other M12 connectors that meet the IEC 61076-2-101 standard, ensuring interoperability and flexibility in system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M12A-04PFFP-SF8002 Overview

Use the download button to access the M12A-04PFFP-SF8002 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M12A-, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
