M12D-04PFFP-SF8001 - Amphenol

Description: Conn Circular F 4 POS Solder ST Thru-Hole 4 Terminal 1 Port

Download M12D-04PFFP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M12D-04PFFP-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

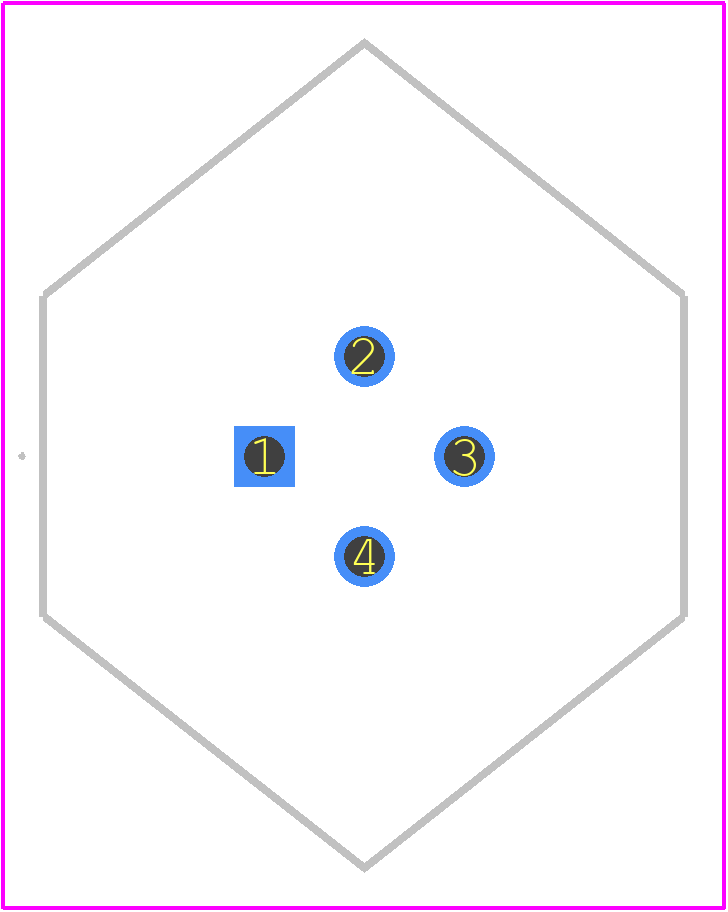

M12D-04PFFP-SF8001 - Amphenol PCB footprint - Other - Other - M12D-04PFFP-SF8001-2
click to zoom
3D Models
M12D-04PFFP-SF8001 - Amphenol - 3D model - Other - M12D-04PFFP-SF8001-2
click to zoom

M12D-04PFFP-SF8001 Details

  • Manufacturer Part Number:

    M12D-04PFFP-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

M12D-04PFFP-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the M12D-04PFFP-SF8001 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the M12D-04PFFP-SF8001 connector is designed for outdoor use and meets the IP67 rating, which means it can withstand dust and water ingress.
  • The maximum operating temperature range for the M12D-04PFFP-SF8001 connector is -40°C to 85°C (-40°F to 185°F).
  • Yes, the M12D-04PFFP-SF8001 connector is designed to withstand high-vibration applications and meets the IEC 61373 Cat. 2 standard for vibration resistance.
  • Yes, the M12D-04PFFP-SF8001 connector is designed to be compatible with other M12 connectors from different manufacturers, as it meets the IEC 61076-2-101 standard for M12 connectors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M12D-04PFFP-SF8001 Overview

Use the download button to access the M12D-04PFFP-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M12D-, or try a keyword search, such as Other Circular Connectors
