Part Image

M20-7810945 - Harwin

Description: M20: 9+9 Pos Receptacle DIL Straight SMT Connector 3.75mm high

Download M20-7810945 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-7810945 - Harwin - PCB symbol
click to zoom
PCB Footprints

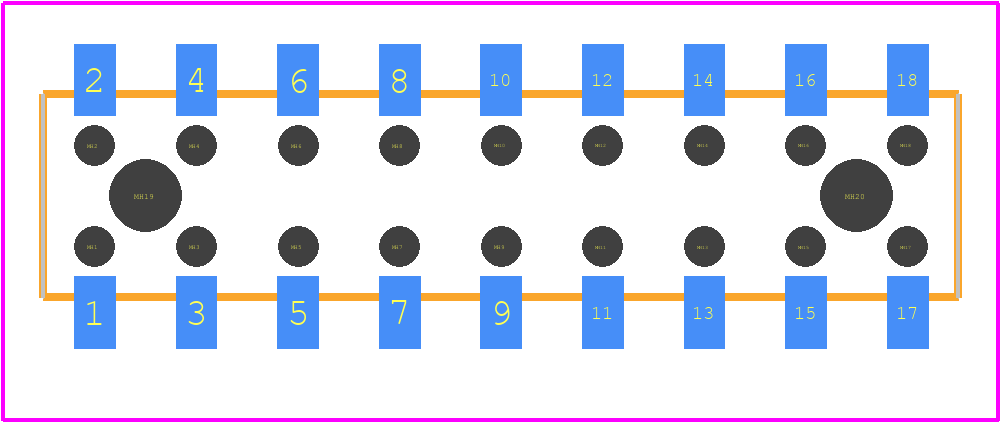

M20-7810945 - Harwin PCB footprint - Other - Other - M20-7810945-1
click to zoom
3D Models
M20-7810945 - Harwin - 3D model - Other - M20-7810945-1
click to zoom

M20-7810945 Details

  • Manufacturer Part Number:

    M20-7810945

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94V-0

M20-7810945 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-7810945 is designed to withstand vibrations up to 10g, making it suitable for high-vibration environments.
  • The operating temperature range is -40°C to +125°C, as specified in the datasheet.
  • Yes, the M20-7810945 has a rugged design and is suitable for use in harsh environments, including those with high humidity or exposure to chemicals.
  • The M20-7810945 is rated for up to 3A per contact, making it suitable for moderate-current applications. However, for high-current applications, it's recommended to consult with Harwin's technical support team.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-7810945 Overview

Use the download button to access the M20-7810945 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-7, or try a keyword search, such as Headers and Edge Type Connectors
