M20-7811045R - Harwin

Description: M20: 10+10 Pos Receptacle DIL Straight SMT Connector 3.75mm high (T+R)

Download M20-7811045R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-7811045R - Harwin - PCB symbol
click to zoom
PCB Footprints

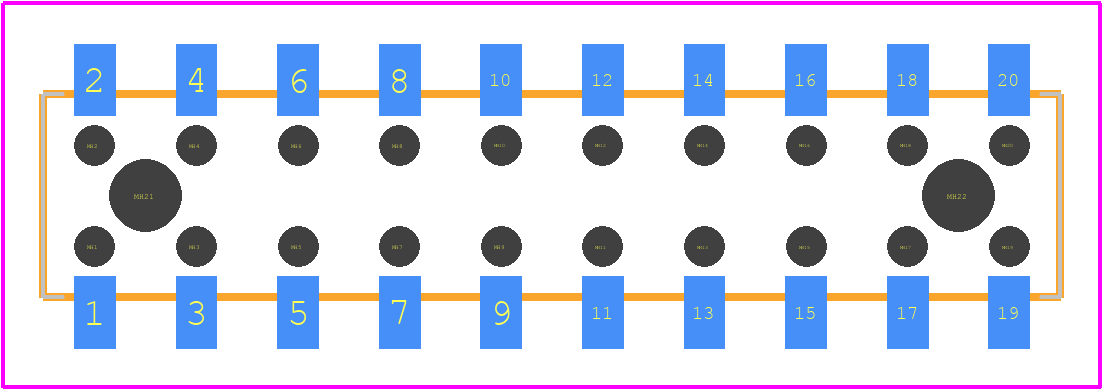

M20-7811045R - Harwin PCB footprint - Other - Other - M20-7811045R-1
click to zoom
3D Models
M20-7811045R - Harwin - 3D model - Other - M20-7811045R-1
click to zoom

M20-7811045R Details

  • Manufacturer Part Number:

    M20-7811045R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

M20-7811045R Frequently Asked Questions (FAQs)

  • The recommended torque for the M20-7811045R connector is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the M20-7811045R connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • Yes, the M20-7811045R connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • The M20-7811045R connector has a mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the M20-7811045R connector is compatible with other Harwin connectors, including the M20 series, allowing for flexibility in design and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M20-7811045R Overview

Use the download button to access the M20-7811045R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M20-7, or try a keyword search, such as Headers and Edge Type Connectors
