M20-9961045 - Harwin

Description: M20: 10 Pos Plug SIL Right-Angle 3mm THT Connector 6.1mm pin Gold

Download M20-9961045 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M20-9961045 - Harwin - PCB symbol
click to zoom
PCB Footprints

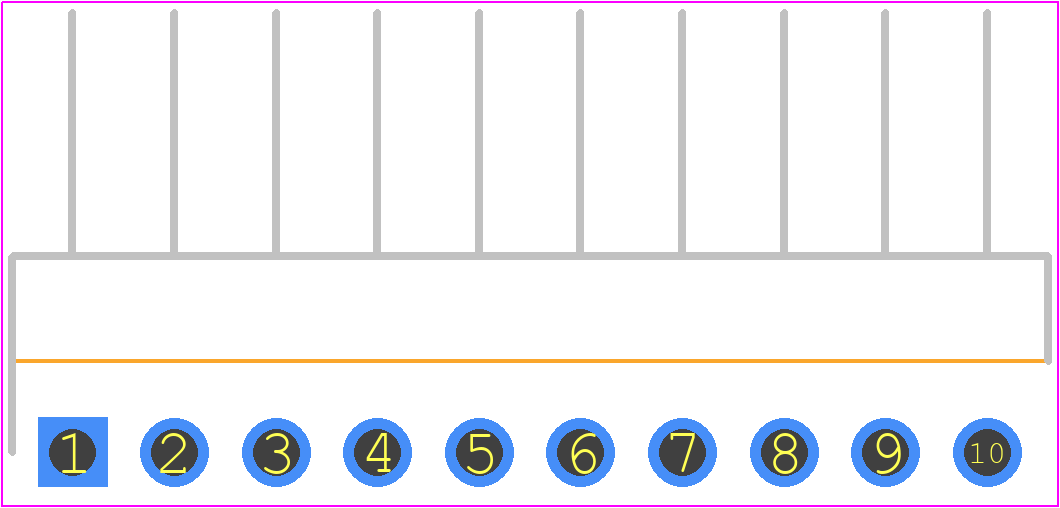

M20-9961045 - Harwin PCB footprint - Header, Unshrouded - Right Angle PTH Pin - Header, Unshrouded - Right Angle PTH Pin - M20-9961045
click to zoom
3D Models
M20-9961045 - Harwin - 3D model - Header, Unshrouded - Right Angle PTH Pin - M20-9961045
click to zoom

M20-9961045 Details

  • Manufacturer Part Number:

    M20-9961045

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

M20-9961045 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the M20-9961045 is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the M20-9961045 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes, making it suitable for outdoor use.
  • The M20-9961045 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The M20-9961045 is a PCB-mount connector, and it can be directly mounted to a printed circuit board. However, it requires a mating connector (e.g., M20-9961046) for connection to a cable or another PCB.
