M200F-040.0M footprint, schematic symbol and 3D model by Connor Winfield

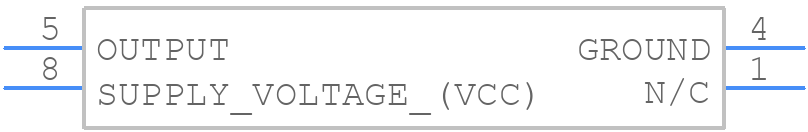

Symbol

PCB Footprints

3D Models

M200F-040.0M Details

The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize jitter.
The M200F-040.0M requires a stable power supply with a voltage range of 3.3V ± 0.3V. Ensure the power supply noise is minimized, and decoupling capacitors are used to filter out noise.
The M200F-040.0M can operate in a temperature range of -40°C to +85°C. However, it's recommended to operate within -20°C to +70°C for optimal performance.
The M200F-040.0M's output signal is a CMOS-level signal. Ensure the receiving circuit is designed to handle CMOS-level signals, and use proper signal termination to minimize signal degradation.
The typical start-up time for the M200F-040.0M is around 10ms. However, this can vary depending on the specific application and power-up conditions.

Community Provided

System Verified

Community Approved

Use the download button to access the M200F-040.0M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like M200F, or try a keyword search, such as TCXO
