M2013S2A2W30 footprint, schematic symbol and 3D model by NKK Switches

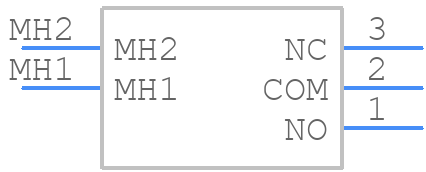

Symbol

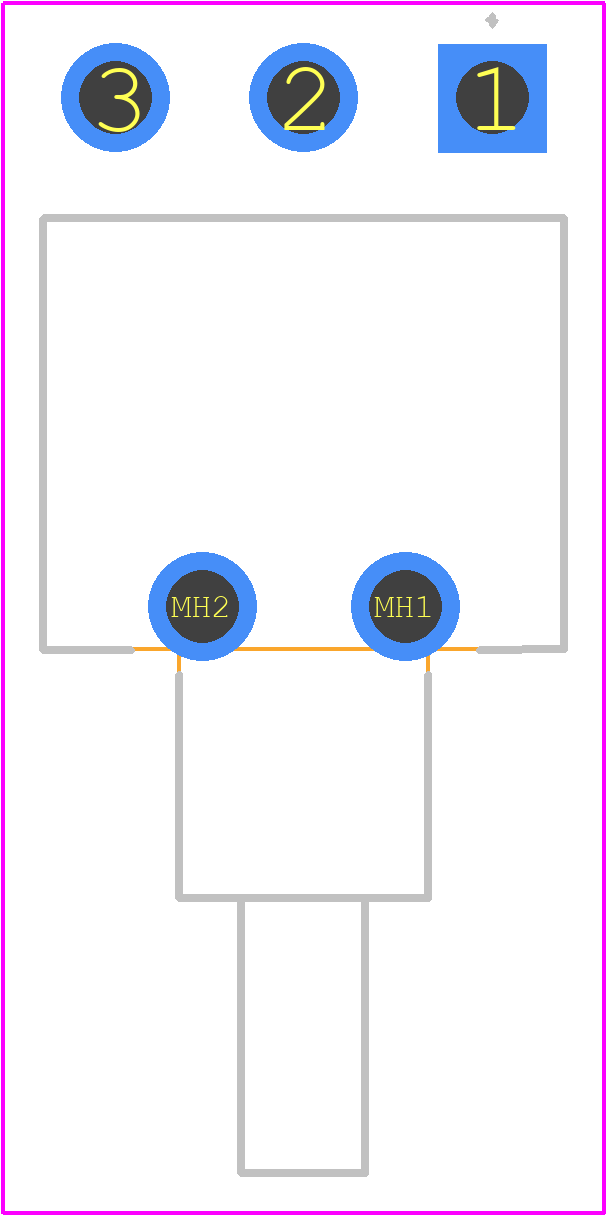

PCB Footprints

M2013S2A2W30 Details

The recommended torque for mounting the M2013S2A2W30 switch is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.07 lbf·in).
Yes, the M2013S2A2W30 switch is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2000 Hz.
The M2013S2A2W30 switch can operate in temperatures ranging from -40°C to 85°C (-40°F to 185°F).
The switch is resistant to common cleaning solvents and chemicals, but it's recommended to avoid using strong acids, alkalis, or organic solvents, as they may damage the switch's components.
The M2013S2A2W30 switch has a mechanical life expectancy of 10,000 to 50,000 cycles, depending on the operating conditions and usage.

Community Provided

System Verified

Community Approved

Use the download button to access the M2013S2A2W30 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M2013, or try a keyword search, such as Toggle Switches
