M21151G-23 - MACOM

Description: 72x72/144x144 3.2 Gbps Asynchronous Crosspoint Switch with Amplif-EYE Signal Conditioning

Download M21151G-23 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M21151G-23 - MACOM - PCB symbol
click to zoom
PCB Footprints

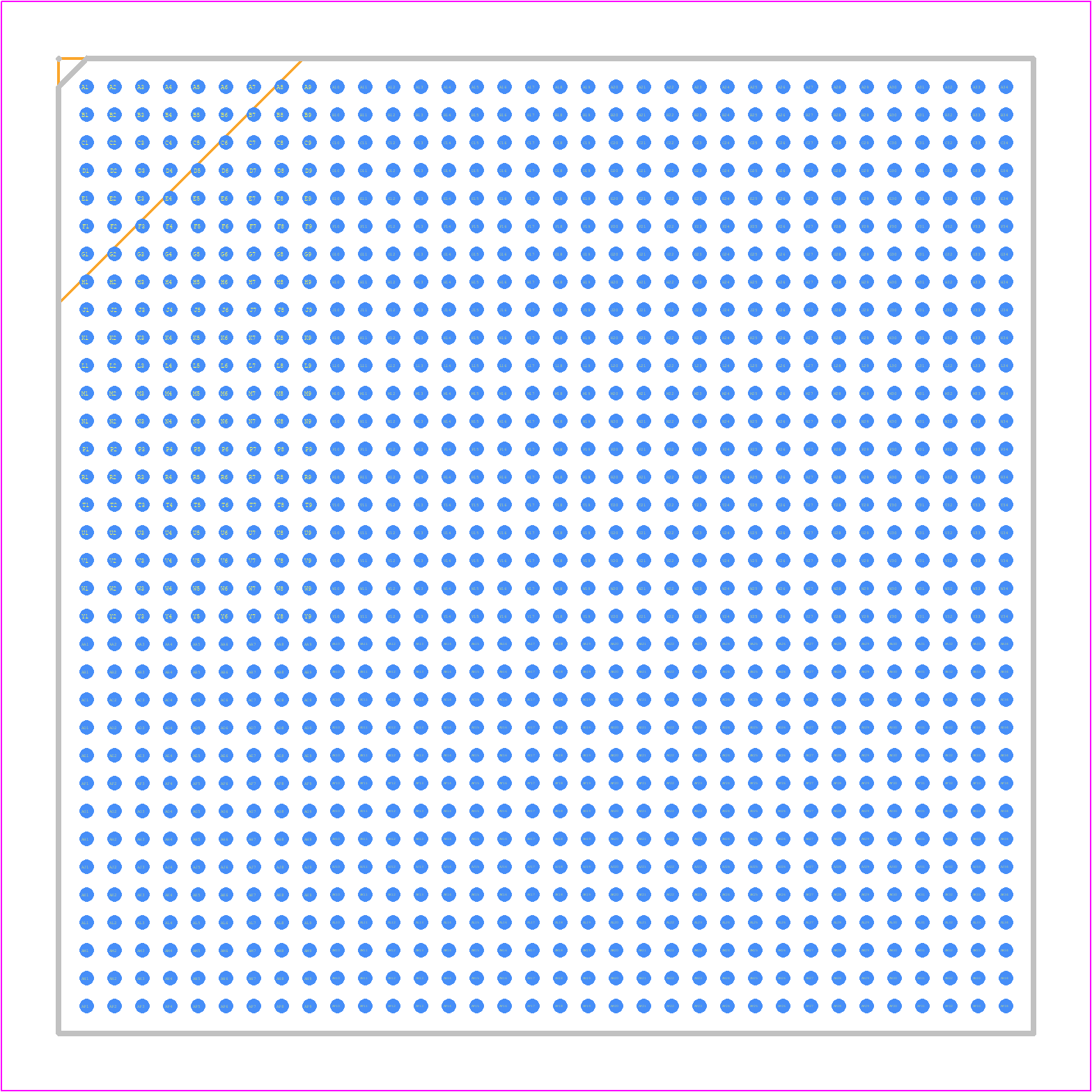

M21151G-23 - MACOM PCB footprint - BGA - BGA - 1156-terminal BGA
click to zoom
3D Models
M21151G-23 - MACOM - 3D model - BGA - 1156-terminal BGA
click to zoom

M21151G-23 Details

  • Manufacturer Part Number:

    M21151G-23

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-1156

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    MACOM

  • YTEOL:

    8

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-PBGA-B1156

  • JESD-609 Code:

    e1

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    5

  • Number of Channels:

    144

  • Number of Functions:

    1

  • Number of Terminals:

    1156

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1156,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.16 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    35 mm

M21151G-23 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the thermal pad.
  • The M21151G-23 requires a bias voltage of 5V ± 0.5V and a bias current of 100 mA ± 10 mA. Ensure the bias circuitry is designed to provide a stable voltage and current, and that the device is properly terminated to prevent oscillations.
  • MACOM recommends using a conjugate match at the input and output ports to achieve optimal performance. A 50 ohm microstrip line with a quarter-wave transformer can be used for input matching, and a similar approach can be used for output matching.
  • The M21151G-23 is sensitive to ESD, so it's essential to handle the device with care. Use ESD-safe handling procedures, such as wearing an ESD strap, using ESD-safe work surfaces, and storing the device in ESD-safe packaging.
  • The M21151G-23 is designed to operate within a temperature range of -40°C to +85°C. However, optimal performance is achieved within a temperature range of 0°C to +70°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M21151G-23 Overview

Use the download button to access the M21151G-23 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2115, or try a keyword search, such as Multiplexers or Switches
