M24308/2-565 - Amphenol

Description: D-Sub Mil Spec Connectors Mil-Spec D-Sub

Download M24308/2-565 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M24308/2-565 - Amphenol - PCB symbol
click to zoom
PCB Footprints

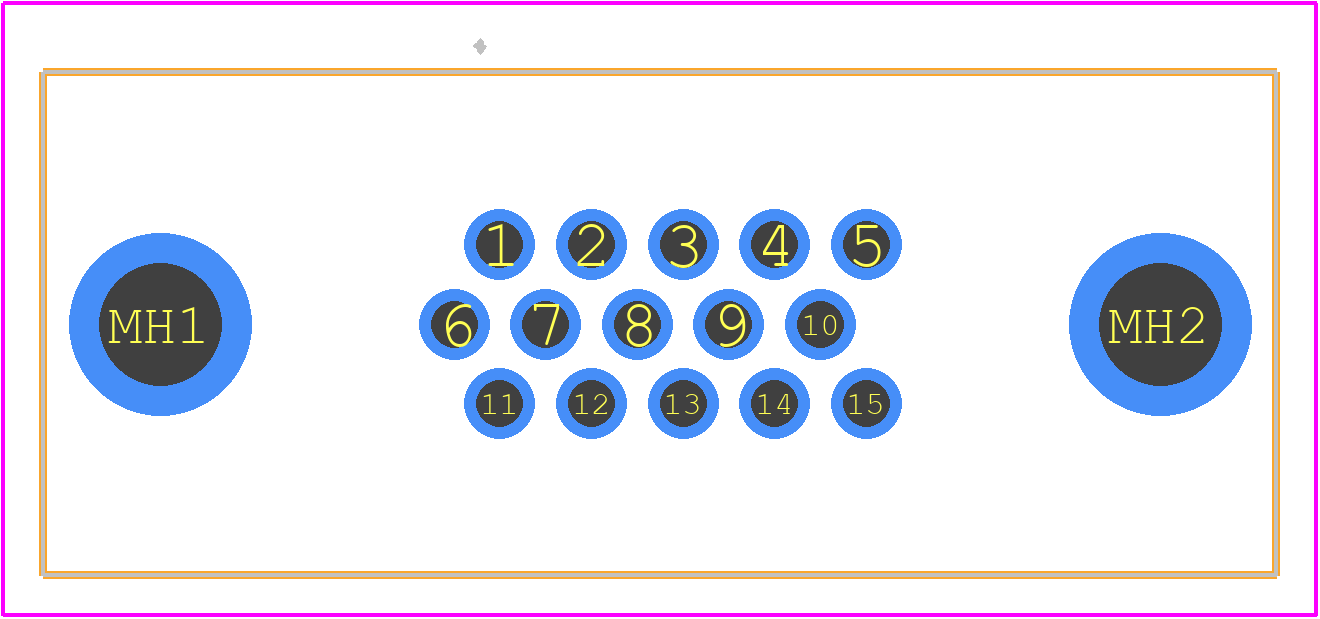

M24308/2-565 - Amphenol PCB footprint - Other - Other - M24308/2-565-1
click to zoom
3D Models
M24308/2-565 - Amphenol - 3D model - Other - M24308/2-565-1
click to zoom

M24308/2-565 Details

  • Manufacturer Part Number:

    M24308/2-565

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1/E

  • Termination Type:

    CRIMP

  • Total Number of Contacts:

    9

M24308/2-565 Frequently Asked Questions (FAQs)

  • The operating temperature range of M24308/2-565 is -65°C to 200°C.
  • Yes, M24308/2-565 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The mating cycle life of M24308/2-565 is 500 cycles minimum, which means it can withstand at least 500 connect and disconnect cycles without compromising its performance.
  • Yes, M24308/2-565 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • Yes, M24308/2-565 is designed to operate in harsh environments, including exposure to moisture, salt spray, and extreme temperatures, making it suitable for outdoor and industrial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/2-565 Overview

Use the download button to access the M24308/2-565 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
