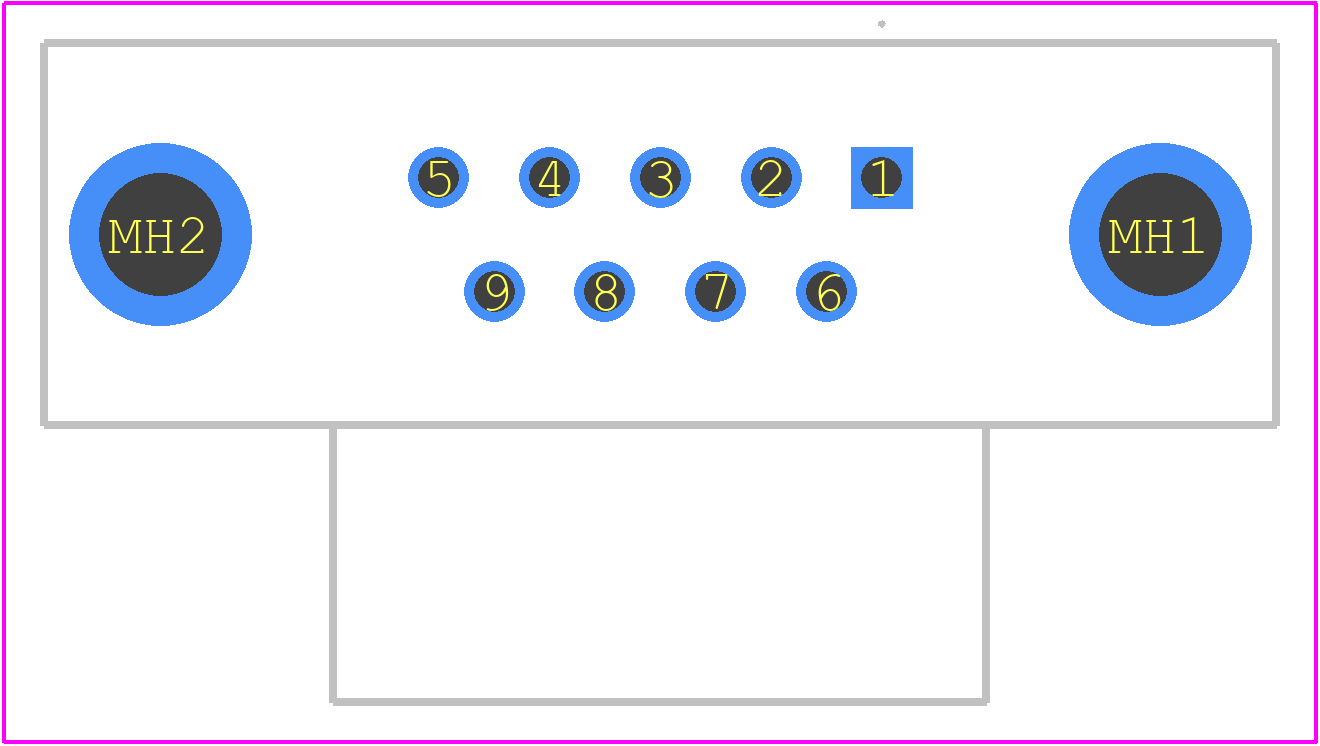

PCB Footprints
M24308/2-6F - Amphenol PCB footprint - Other - Other - M24308/2-6F-2
click to zoom
3D Models
M24308/2-6F - Amphenol - 3D model - Other - M24308/2-6F-2
click to zoom

M24308/2-6F Details

  • Manufacturer Part Number:

    M24308/2-6F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    CABLE AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1/E

  • Termination Type:

    CRIMP

  • Total Number of Contacts:

    9

M24308/2-6F Frequently Asked Questions (FAQs)

  • The operating temperature range of M24308/2-6F is -55°C to 125°C.
  • Yes, M24308/2-6F is designed to withstand high-vibration environments and is commonly used in aerospace and defense applications.
  • The mating cycle life of M24308/2-6F is 500 cycles minimum.
  • Yes, M24308/2-6F is RoHS compliant and meets the requirements of the European Union's Restriction of Hazardous Substances directive.
  • The typical insertion force of M24308/2-6F is 10-15 pounds per contact.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/2-6F Overview

Use the download button to access the M24308/2-6F schematic symbol, PCB footprint, and 3D model.
