- Part Number M24308/23-10
- Manufacturer TE Connectivity
- Pin Count 39
- Part Category Connector
- Package Category Other

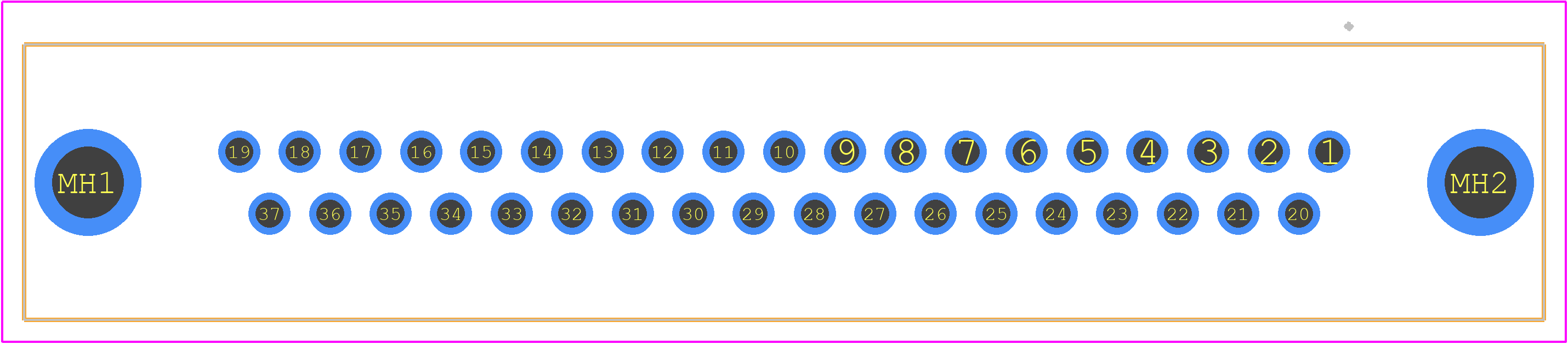

- Footprint Name Other - M24308/23-10-3
- Released Date Oct 8, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
M24308/23-10 Details
-
Manufacturer Part Number:
M24308/23-10
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
STANDARD: MIL-C-24308
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Mating:
GOLD
-
Contact Gender:
FEMALE
M24308/23-10 Frequently Asked Questions (FAQs)
-
The recommended torque value for the M24308/23-10 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw terminals and 15-18 in-lbs (1.7-2.0 Nm) for the nut plates.
-
Yes, the M24308/23-10 connector is designed to meet the requirements of MIL-DTL-24308, which includes vibration testing. It is suitable for high-vibration applications, but it's recommended to consult with TE Connectivity's application engineers for specific requirements.
-
The M24308/23-10 connector is designed to operate in a temperature range of -55°C to 125°C and can withstand humid environments. However, it's recommended to consult with TE Connectivity's application engineers for specific environmental requirements and to ensure the connector meets the necessary specifications.
-
The M24308/23-10 connector has a mating cycle life of 500 cycles minimum, as per the MIL-DTL-24308 specification.
-
Yes, the M24308/23-10 connector is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances and the registration, evaluation, authorization, and restriction of chemicals.
Trust Checks
Expert Contribution
System Verified
Community Approved
M24308/23-10 Overview
Use the download button to access the M24308/23-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430,
or try a keyword search, such as D Type Connectors
