M24308/23-26F - ITT CANNON

Description: 15 Position D-Sub Receptacle, Female Sockets Connector 2 (DA, A) 50.0µin (1.27µm) 7.5A -55°C ~ 150°C

Download M24308/23-26F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

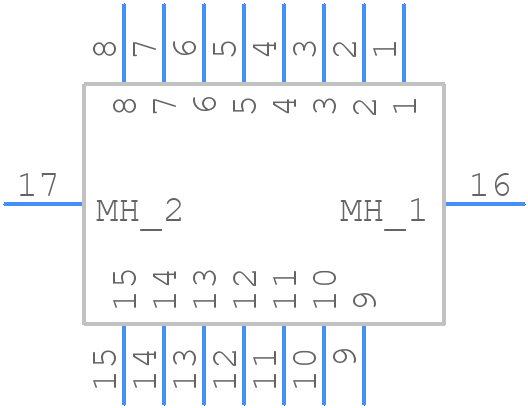

M24308/23-26F - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

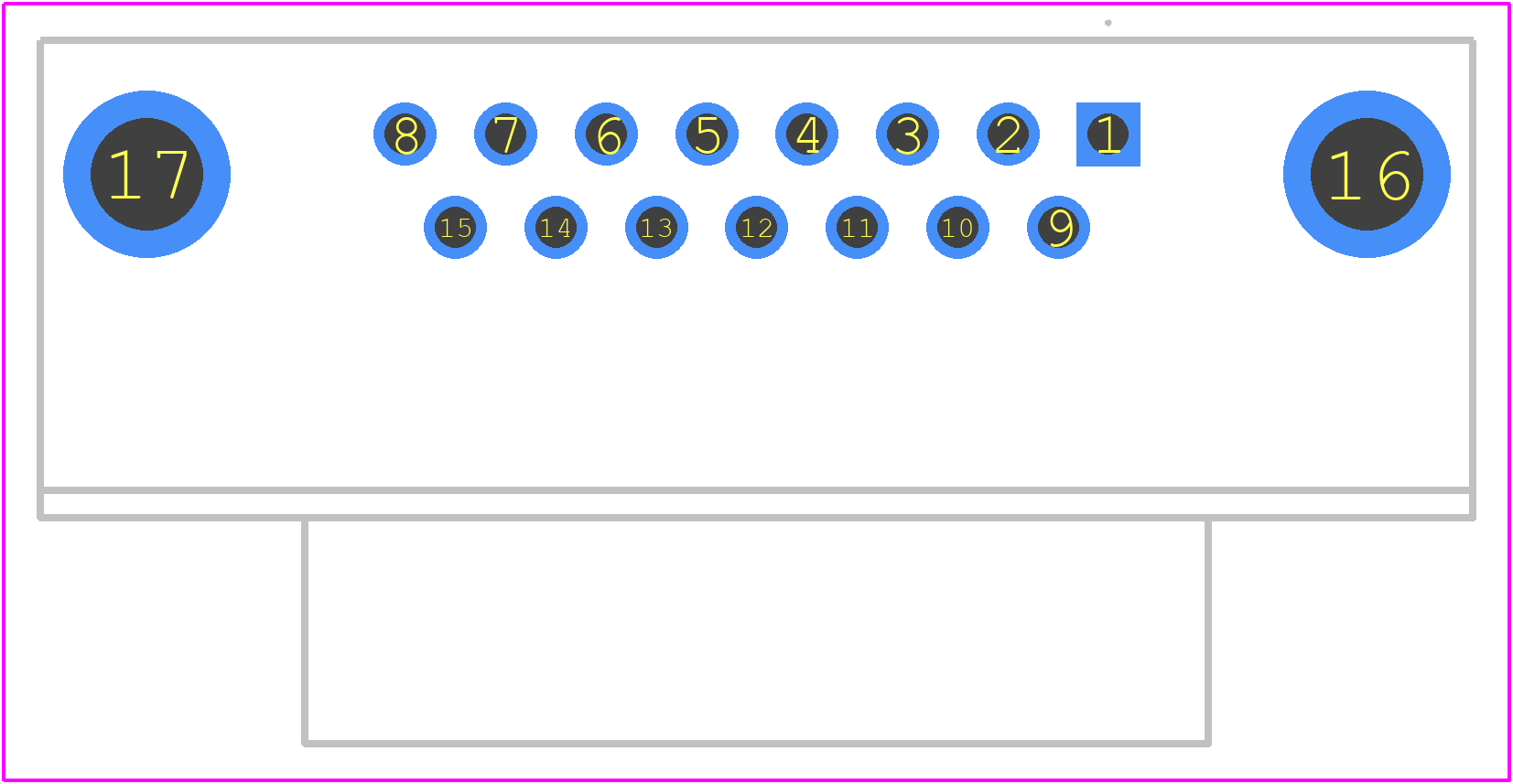

M24308/23-26F - ITT CANNON PCB footprint - Other - Other - M24308/23-26F-2
click to zoom

M24308/23-26F Details

  • Manufacturer Part Number:

    M24308/23-26F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.18

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

M24308/23-26F Frequently Asked Questions (FAQs)

  • The operating temperature range of the M24308/23-26F connector is -55°C to 125°C.
  • Yes, the M24308/23-26F connector is designed to withstand high-vibration environments and is commonly used in aerospace and defense applications.
  • The M24308/23-26F connector has a mating cycle life of 500 cycles minimum.
  • Yes, the M24308/23-26F connector is designed to be compatible with other MIL-DTL-24308 connectors from different manufacturers.
  • The typical lead time for delivery of the M24308/23-26F connector is 12-16 weeks, but this may vary depending on the quantity and availability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/23-26F Overview

Use the download button to access the M24308/23-26F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors
