M24308/23-28F - ITT CANNON

Description: 37 Position D-Sub Receptacle, Female Sockets Connector

Download M24308/23-28F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M24308/23-28F - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

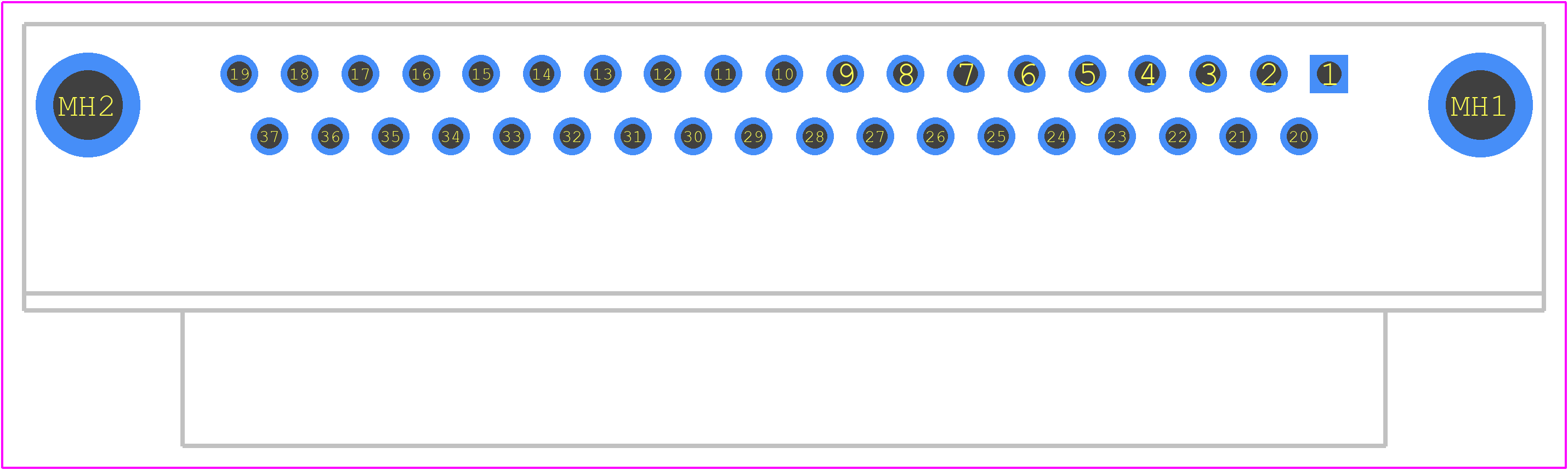

M24308/23-28F - ITT CANNON PCB footprint - Other - Other - M24308/23-28F-2
click to zoom
3D Models
M24308/23-28F - ITT CANNON - 3D model - Other - M24308/23-28F-2
click to zoom

M24308/23-28F Details

  • Manufacturer Part Number:

    M24308/23-28F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.5

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

M24308/23-28F Frequently Asked Questions (FAQs)

  • The operating temperature range of M24308/23-28F is -55°C to 125°C.
  • Yes, M24308/23-28F is compliant with MIL-DTL-24308, a US military standard for circular connectors.
  • The mating cycle life of M24308/23-28F is 500 cycles minimum.
  • Yes, M24308/23-28F is designed to withstand high-vibration environments and is suitable for use in aerospace, defense, and other high-reliability applications.
  • Yes, M24308/23-28F is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/23-28F Overview

Use the download button to access the M24308/23-28F schematic symbol, PCB footprint, and 3D model.
