M24308/23-32 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

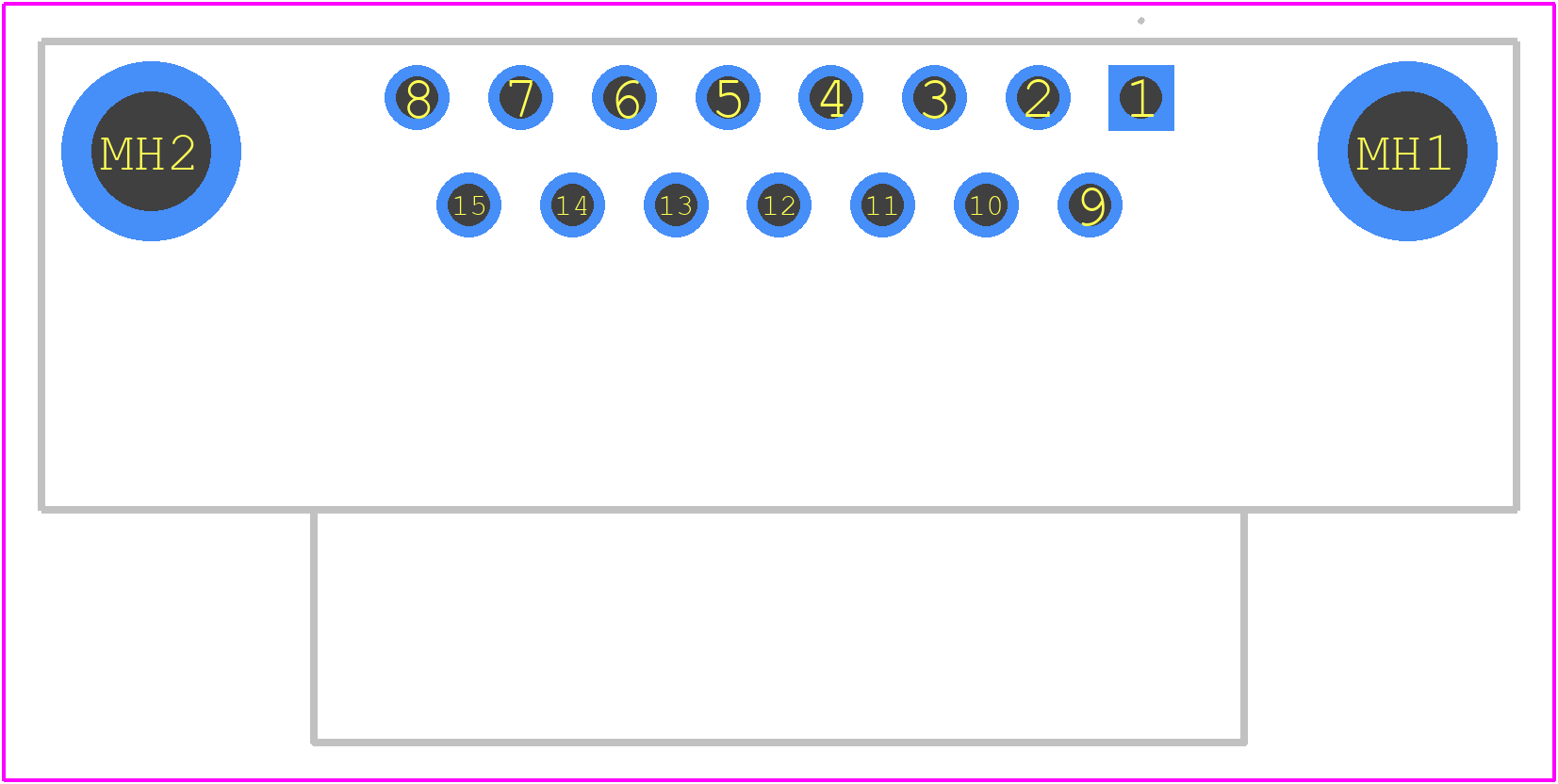

M24308/23-32 - TE Connectivity PCB footprint - Other - Other - M24308/23-32-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M24308/23-32
Part Number M24308/23-32
Manufacturer TE Connectivity
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - M24308/23-32-2
Released Date Aug 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

M24308/23-32 Details

Manufacturer Part Number:
M24308/23-32
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
STANDARD: MIL-C-24308
Body Breadth:
0.509 inch
Body Depth:
0.264 inch
Body Length:
1.556 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
TIN LEAD
Contact Gender:
FEMALE
Contact Pattern:
STAGGERED
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
POLYPHENYLENE SULFIDE
JESD-609 Code:
e0
MIL Conformance:
YES
Mixed Contacts:
NO
Mounting Option 1:
HOLE .12
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
1.42 mm
Plating Thickness:
10u inch
Shell Finish:
YELLOW CHROMATE/ZINC
Shell Material:
STEEL
Shell Size:
2/A
Terminal Length:
0.176 inch
Terminal Pitch:
2.74 mm
Termination Type:
SOLDER
Total Number of Contacts:
15

M24308/23-32 Frequently Asked Questions (FAQs)

The recommended torque value for the M24308/23-32 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw-locked version and 15-18 in-lbs (1.7-2.0 Nm) for the bayonet-coupled version.
Yes, the M24308/23-32 connector is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-24308, which includes vibration testing.
Yes, the M24308/23-32 connector is designed to operate in harsh environments, including high temperatures up to 200°C (392°F) and high humidity. However, it's essential to follow the recommended derating guidelines and environmental testing procedures.
The M24308/23-32 connector has a minimum mating cycle life of 500 cycles, but this can vary depending on the specific application, environmental conditions, and maintenance practices.
Yes, the M24308/23-32 connector is part of the M24308 series and is compatible with other connectors in the same series, including the M24308/23-28, M24308/23-30, and M24308/23-34.
