M24308/23-5F - Cinch Connectivity Solutions

M24308/23-5F Details

• Manufacturer Part Number:

  M24308/23-5F

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Cinch Connectivity Solutions

• YTEOL:

  6

• Additional Feature:

  STANDARD: MIL-DTL-24308; POLARIZED

• Body Breadth:

  0.605 inch

• Body Depth:

  0.28 inch

• Body Length:

  2.635 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  2.7 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1250VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  3.336 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  GREEN

• Insulator Material:

  GLASS FILLED DIALLYL PHTHALATE

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.109 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .112-.124

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

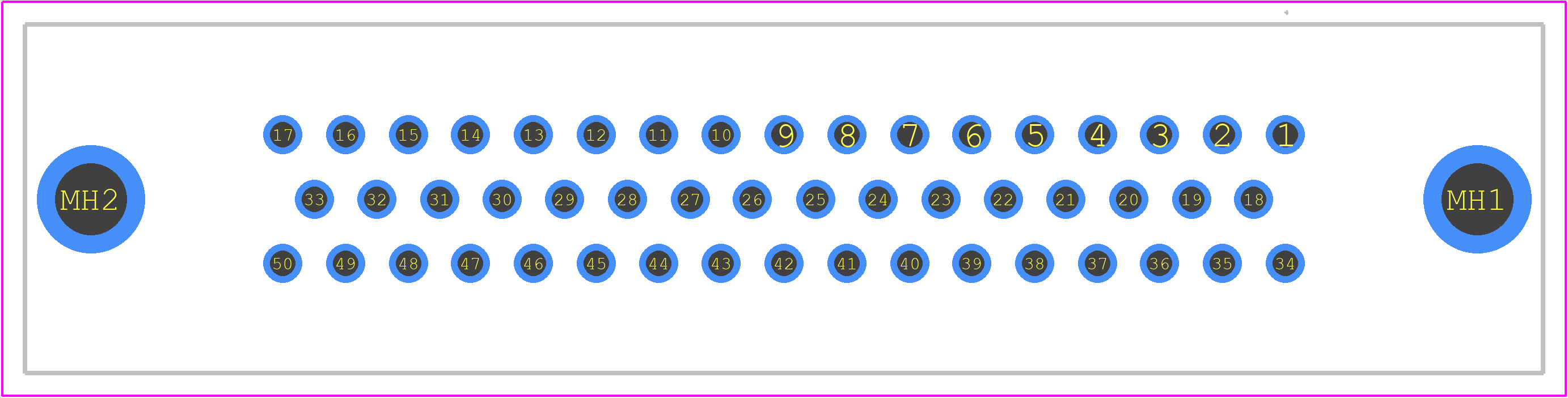

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Plating Thickness:

  50u inch

• Rated Current (Signal):

  5 A

• Shell Finish:

  CADMIUM

• Shell Material:

  STEEL

• Shell Size:

  5/D

• Terminal Length:

  0.156 inch

• Terminal Pitch:

  2.7686 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  50

• Withdrawl Force-Min:

  .1946 N
