M24308/24-32F - TE Connectivity

Description: 15 Position D-Shaped Connector, Plug, Cable-to-Board, Board Mount, Shell Size 2, 2.77 mm [.109 in] Centerline, Printed Circuit Board, Signal

Download M24308/24-32F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

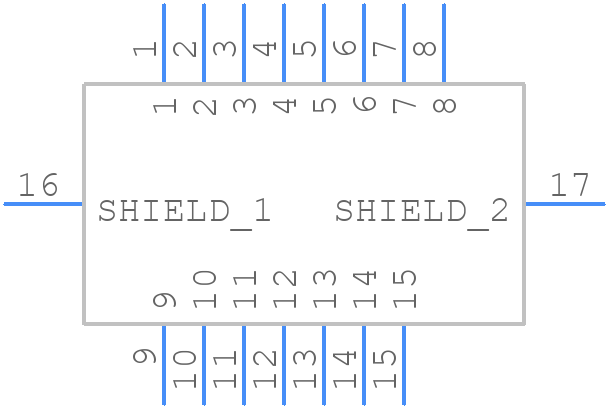

M24308/24-32F - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

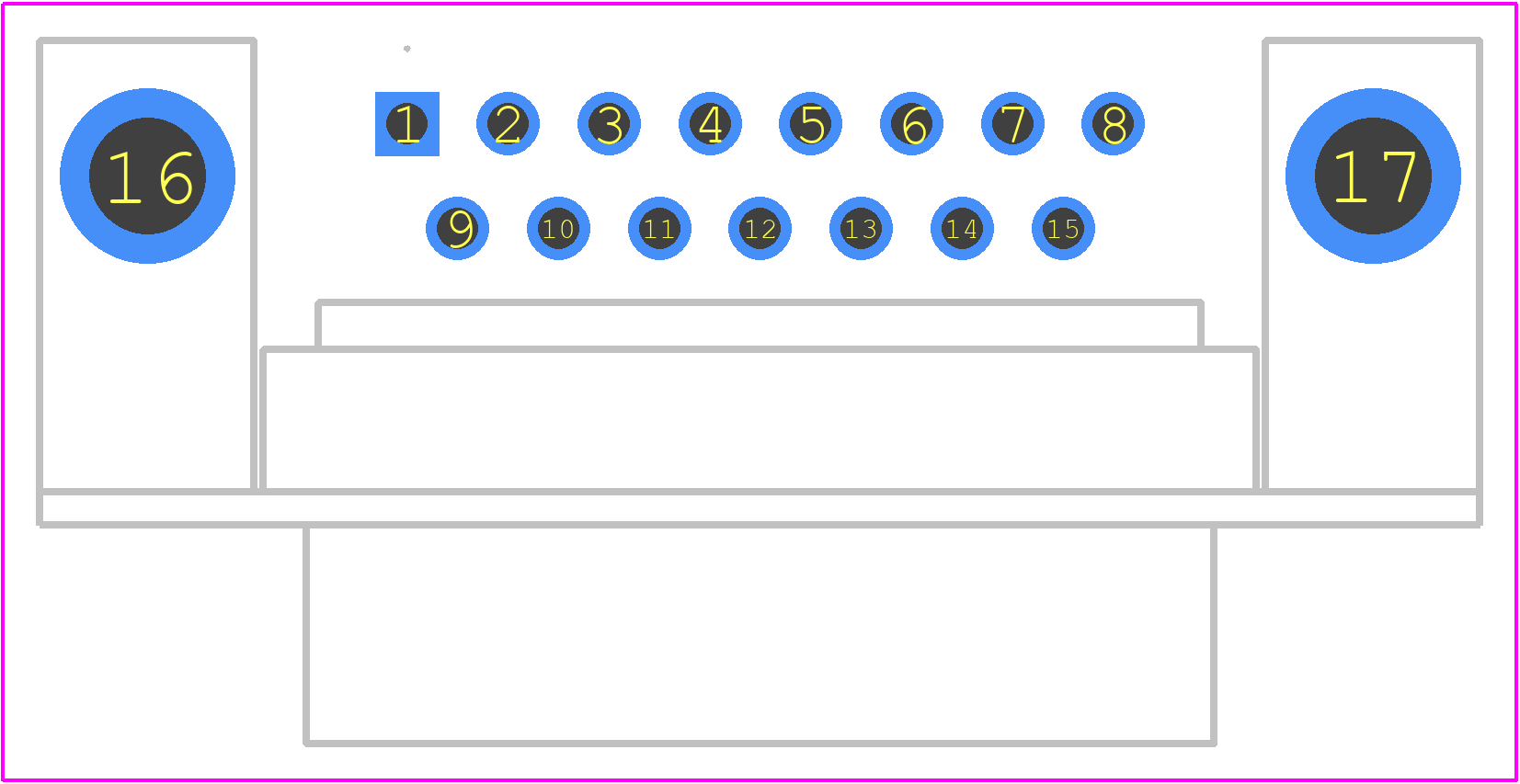

M24308/24-32F - TE Connectivity PCB footprint - Other - Other - M24308/24-32F-4
click to zoom
3D Models
M24308/24-32F - TE Connectivity - 3D model - Other - M24308/24-32F-4
click to zoom

M24308/24-32F Details

  • Manufacturer Part Number:

    M24308/24-32F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    23 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.18

  • Additional Feature:

    AMPLIMITE, STANDARD: MIL-C-24308

  • Board Mounting Option:

    HOLE .122-.128

  • Body Breadth:

    0.509 inch

  • Body Depth:

    0.534 inch

  • Body Length:

    1.556 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD (50) OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYPHENYLENE SULPHIDE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.056 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE .115-.125

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8448 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    5 A

  • Shell Finish:

    CADMIUM

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Terminal Length:

    0.156 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

M24308/24-32F Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the M24308/24-32F connector. However, it's always best to consult the specific application requirements and follow the recommended torque values specified by TE Connectivity or the system designer.
  • Yes, the M24308/24-32F connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-24308 and is suitable for use in applications with high vibration levels. However, it's essential to ensure proper installation, mating, and securing of the connector to prevent damage or disconnection.
  • The M24308/24-32F connector is designed to operate in a wide range of temperatures (-55°C to 125°C) and can withstand high humidity. However, it's crucial to ensure that the connector is properly sealed and mated to prevent moisture ingress. Additionally, the connector's performance may degrade in extreme environmental conditions, so it's essential to consult the datasheet and application notes for specific guidance.
  • Yes, the M24308/24-32F connector is designed to be compatible with other TE Connectivity products and third-party components that meet the MIL-DTL-24308 standard. However, it's essential to ensure compatibility and interoperability by consulting the datasheets and application notes for each component.
  • The typical lead time for delivery of the M24308/24-32F connector varies depending on the quantity, region, and availability. It's best to consult with TE Connectivity or an authorized distributor for the most up-to-date lead time information and to plan accordingly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/24-32F Overview

Use the download button to access the M24308/24-32F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
