M24308/24-35F footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

PCB Footprints

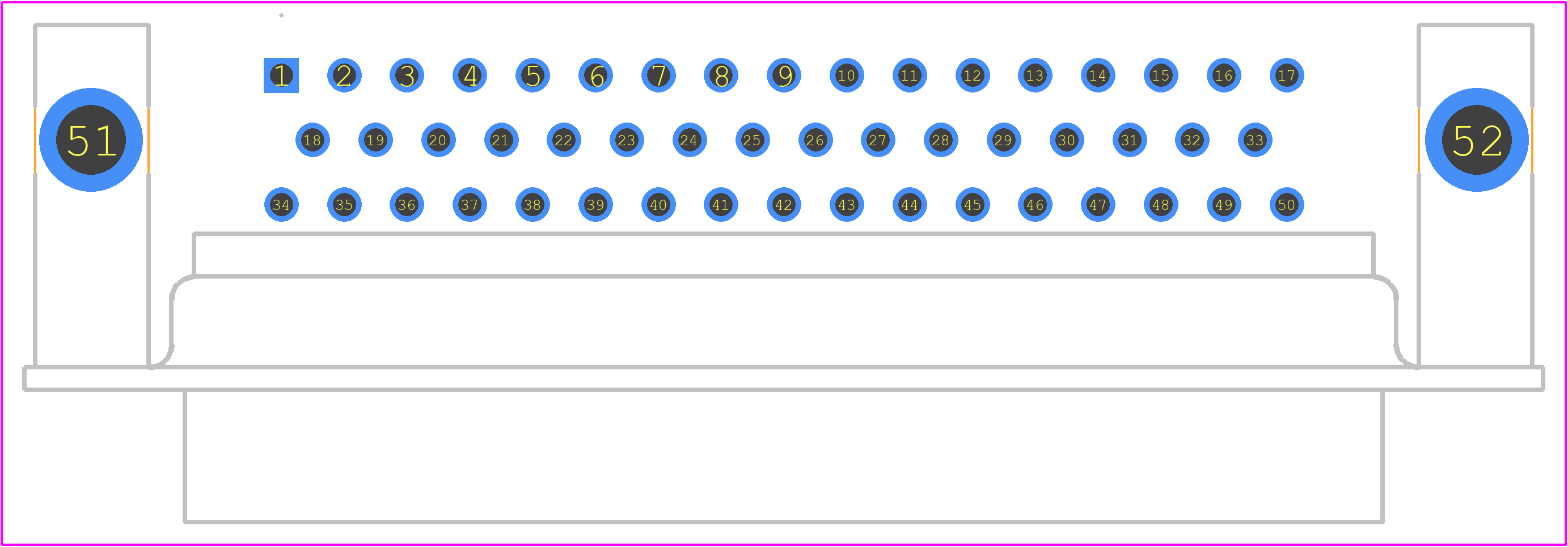

M24308/24-35F - Positronic PCB footprint - Other - Other - M24308/24-35F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M24308/24-35F
Part Number M24308/24-35F
Manufacturer Positronic
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - M24308/24-35F-2
Released Date Nov 19, 2025
Last Modified Date Dec 4, 2025 11:30 AM UTC
Pinout / Pin List Click Here (Member Only)

M24308/24-35F Details

Manufacturer Part Number:
M24308/24-35F
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
9
Additional Feature:
STANDARD: MIL-DTL-24308, POLARIZED
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Size:
5/D
Termination Type:
SOLDER
Total Number of Contacts:
50

M24308/24-35F Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Amphenol Positronic's application notes.
Yes, the M24308/24-35F is designed to meet the requirements of MIL-DTL-24308, which includes vibration testing. However, it's recommended to consult with Amphenol Positronic's application engineers to ensure the connector meets the specific vibration requirements of your application.
The maximum operating temperature of the M24308/24-35F is 150°C (302°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The M24308/24-35F has a moisture-resistant design, but it's not hermetically sealed. It's recommended to apply a conformal coating or potting compound to protect the connector from moisture and humidity. Consult with Amphenol Positronic's application engineers for specific guidance.
The M24308/24-35F has a minimum mating cycle life of 500 cycles according to the datasheet. However, the actual mating cycle life may be higher depending on the application and environmental conditions.
