M24308/24-50F - ITT CANNON

Description: D-Sub MIL Spec Connectors Pin, Std Density Cadmium,2 ,15

Download M24308/24-50F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

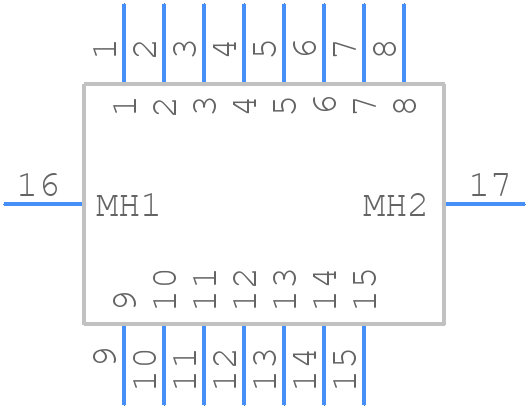

M24308/24-50F - ITT CANNON - PCB symbol
click to zoom
PCB Footprints

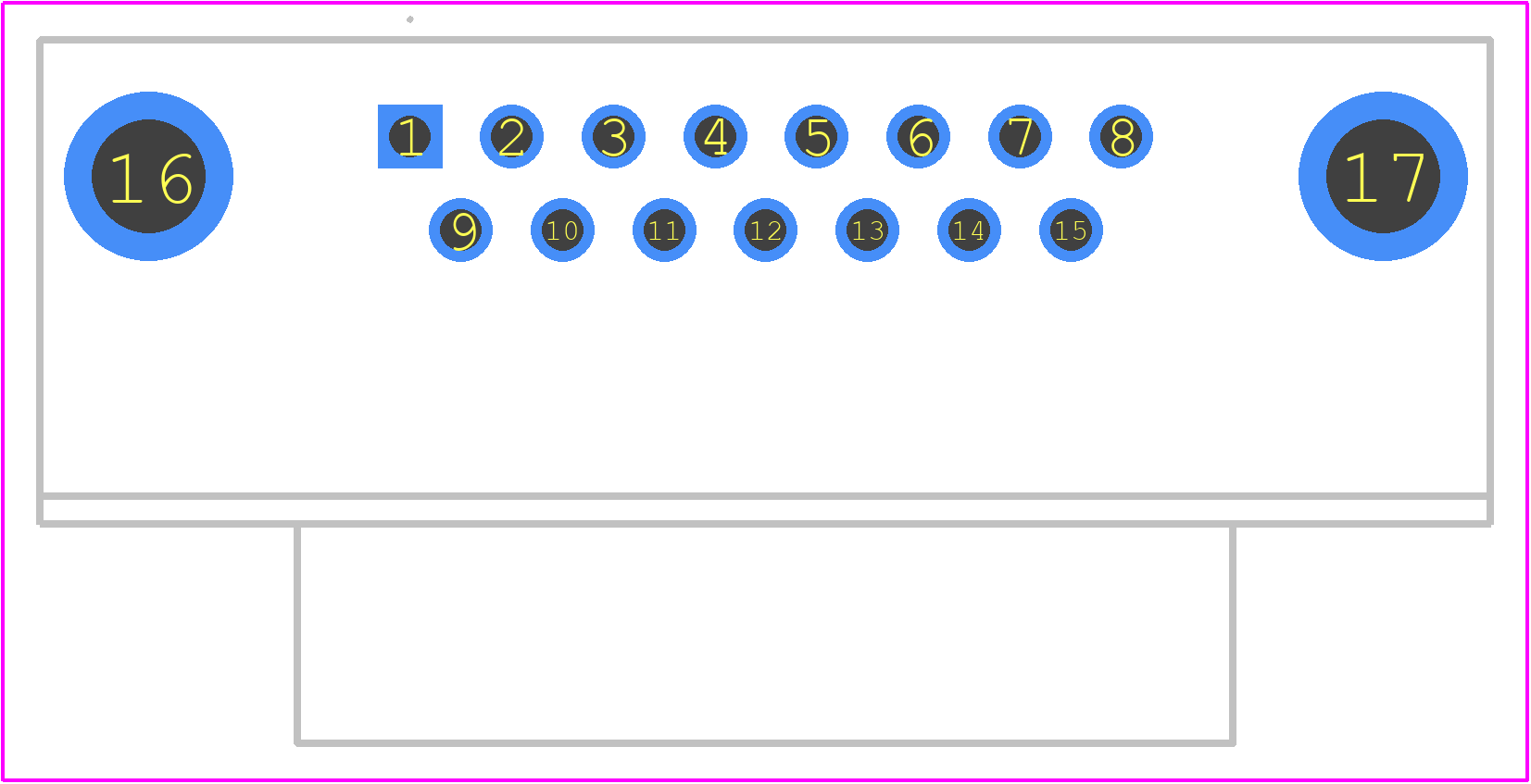

M24308/24-50F - ITT CANNON PCB footprint - Other - Other - M24308/24-50F-3
click to zoom

M24308/24-50F Details

  • Manufacturer Part Number:

    M24308/24-50F

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    ITT Interconnect Solutions

  • YTEOL:

    8.18

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

M24308/24-50F Frequently Asked Questions (FAQs)

  • The operating temperature range of M24308/24-50F is -55°C to 125°C.
  • Yes, M24308/24-50F is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The mating cycle life of M24308/24-50F is 500 cycles minimum.
  • Yes, M24308/24-50F is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and other applications where vibration is a concern.
  • Yes, M24308/24-50F is part of the M24308 series and is compatible with other connectors in the series, allowing for flexibility in design and assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/24-50F Overview

Use the download button to access the M24308/24-50F schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors
