M24308/24-53F footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

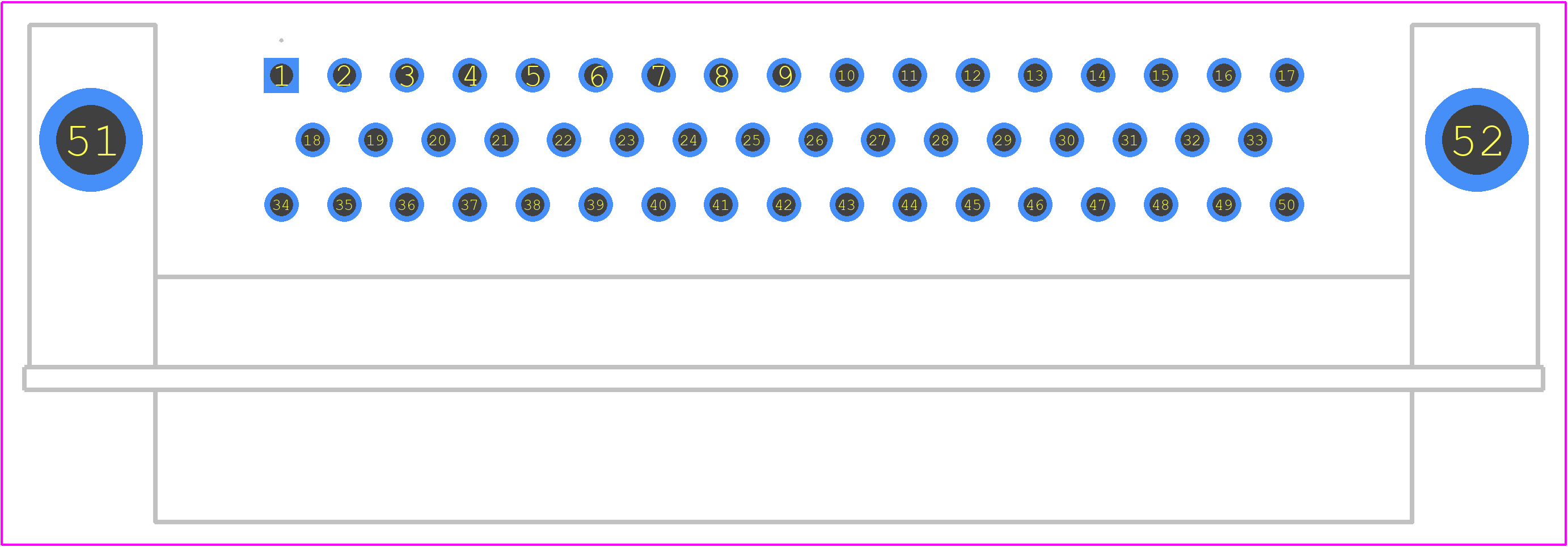

PCB Footprints

M24308/24-53F - Positronic PCB footprint - Other - Other - M24308/24-53F-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M24308/24-53F
Part Number M24308/24-53F
Manufacturer Positronic
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - M24308/24-53F-3
Released Date Jul 24, 2024
Last Modified Date Jul 24, 2024 9:25 AM UTC
Pinout / Pin List Click Here (Member Only)

M24308/24-53F Details

Manufacturer Part Number:
M24308/24-53F
Part Life Cycle Code:
Active
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
9
Additional Feature:
STANDARD: MIL-DTL-24308, POLARIZED
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
YES
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Size:
5/D
Termination Type:
SOLDER
Total Number of Contacts:
50

M24308/24-53F Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the M24308/24-53F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the M24308/24-53F is designed to operate in harsh environments, with a temperature range of -55°C to 125°C and a humidity rating of 95% RH at 40°C.
The M24308/24-53F has a mating cycle life of 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
It is not recommended to use a wire gauge different from the specified 24 AWG, as it may affect the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

M24308/24-53F Overview

Use the download button to access the M24308/24-53F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
