M24308/24-61F - Positronic

Description: D-Sub MIL Spec Connectors D-SUB High Density 15 Pin Plug 3 Row

Download M24308/24-61F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M24308/24-61F - Positronic - PCB symbol
click to zoom
PCB Footprints

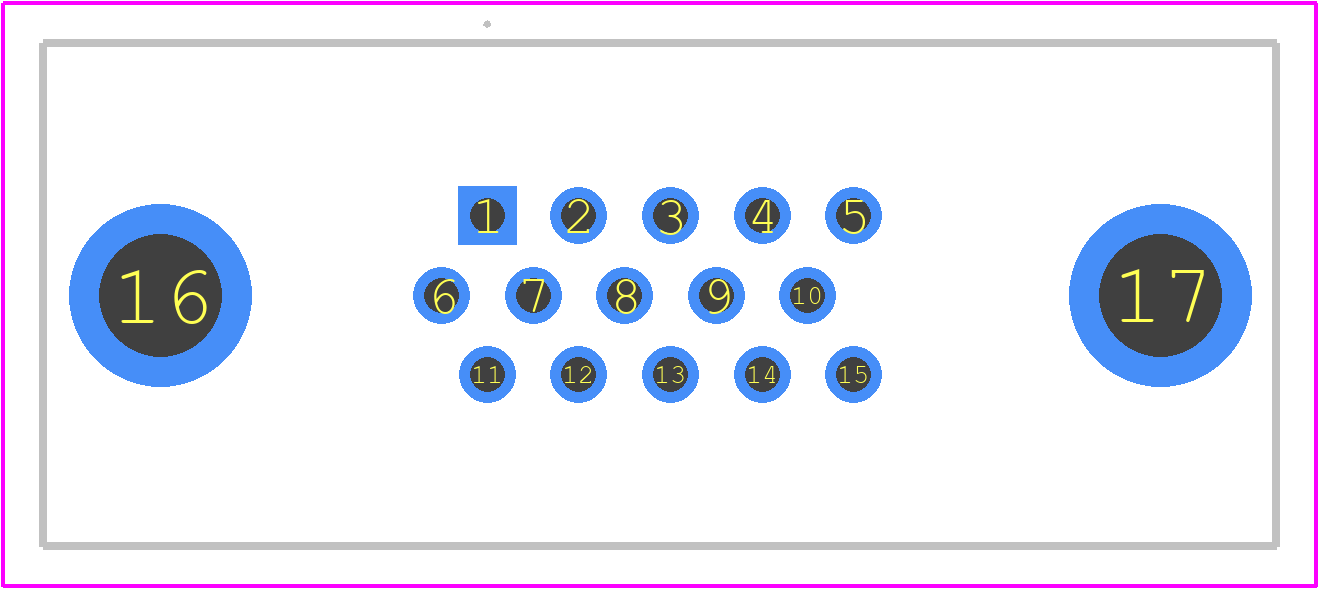

M24308/24-61F - Positronic PCB footprint - Other - Other - M24308/24-61F-1
click to zoom
3D Models
M24308/24-61F - Positronic - 3D model - Other - M24308/24-61F-1
click to zoom

M24308/24-61F Details

  • Manufacturer Part Number:

    M24308/24-61F

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Positronic

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: MIL-DTL-24308, POLARIZED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    YES

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

M24308/24-61F Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the M24308/24-61F is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-24308.
  • The operating temperature range for the M24308/24-61F is -55°C to 125°C (-65°F to 257°F).
  • Yes, the M24308/24-61F is designed to withstand harsh environments and meets the requirements of MIL-DTL-24308, including exposure to humidity, salt spray, and other environmental stresses.
  • The M24308/24-61F can be used with a cable assembly or mounted to a PCB, depending on the specific application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24308/24-61F Overview

Use the download button to access the M24308/24-61F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
