M24308/24-7Z footprint, schematic symbol and 3D model by TE Connectivity

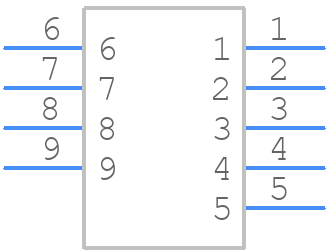

Symbol

click to zoom

PCB Footprints

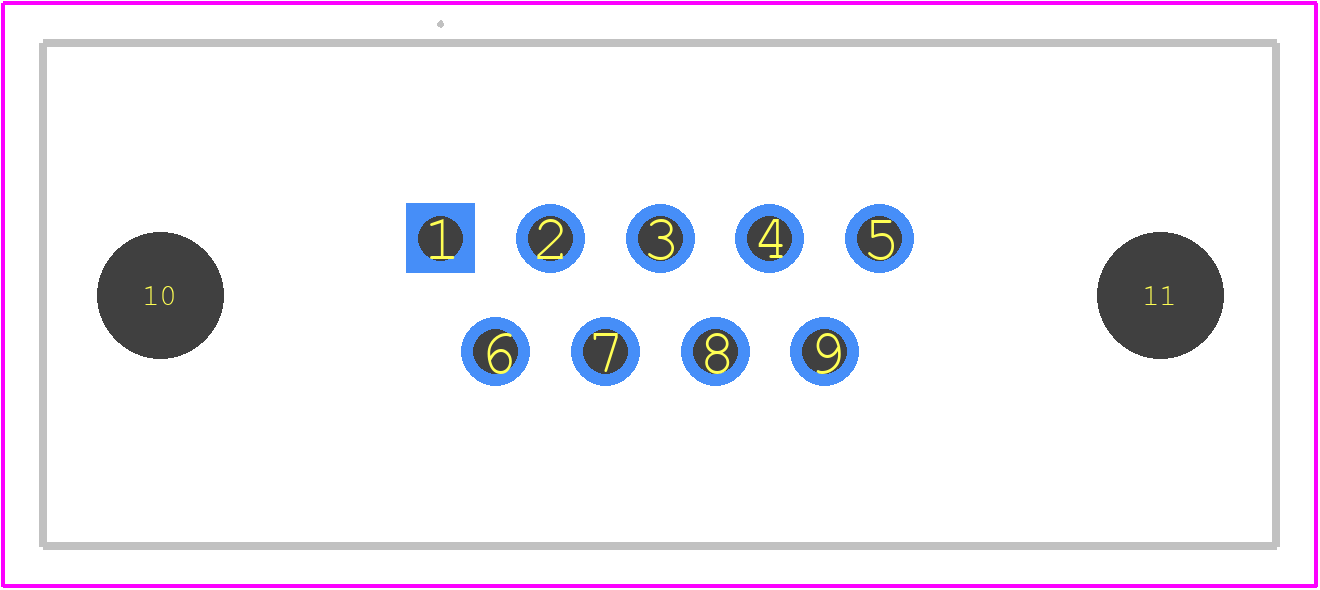

M24308/24-7Z - TE Connectivity PCB footprint - Other - Other - M24308/24-7Z-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for M24308/24-7Z
Part Number M24308/24-7Z
Manufacturer TE Connectivity
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - M24308/24-7Z-3
Released Date Oct 28, 2026
Last Modified Date Oct 27, 2026 9:05 PM UTC
Pinout / Pin List Click Here (Member Only)

M24308/24-7Z Details

Manufacturer Part Number:
M24308/24-7Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
RND PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
5A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Packing Method:
BULK
Panel Mount:
NO
Rated Current (Signal):
5 A
Shell Finish:
ZINC
Shell Material:
STEEL
Shell Size:
1/E
Terminal Length:
0.188 inch
Terminal Pitch:
2.77 mm
Termination Type:
SOLDER
Total Number of Contacts:
9

M24308/24-7Z Frequently Asked Questions (FAQs)

The operating temperature range of M24308/24-7Z is -65°C to 200°C.
Yes, M24308/24-7Z is designed to withstand high-vibration environments and meets the requirements of MIL-DTL-24308.
The typical mating cycle life of M24308/24-7Z is 500 cycles, but this can vary depending on the application and environmental conditions.
Yes, M24308/24-7Z is designed to operate in harsh environments and meets the requirements of MIL-DTL-24308, which includes testing for humidity and salt spray.
The recommended torque value for M24308/24-7Z is 10-15 in-lbs (1.1-1.7 Nm) for the plug and 10-15 in-lbs (1.1-1.7 Nm) for the receptacle.

Trust Checks

Expert Contribution

System Verified

Community Approved

M24308/24-7Z Overview

Use the download button to access the M24308/24-7Z schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like M2430, or try a keyword search, such as D Type Connectors
