M24SR16-YDW6T/2 - STMicroelectronics

Description: STMicroelectronics M24SR16-YDW6T/2 Serial EEPROM Memory, 16kbit, 900ns, 2.7 → 5.5 V 8-Pin TSSOP

Download M24SR16-YDW6T/2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

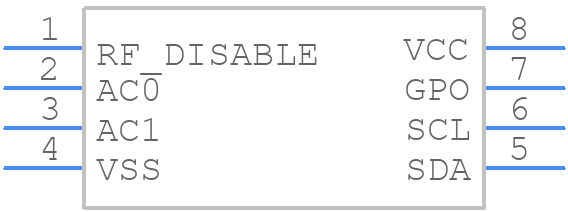

M24SR16-YDW6T/2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M24SR16-YDW6T/2 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - . TSSOP8 – Mechanical data-
click to zoom
3D Models
M24SR16-YDW6T/2 - STMicroelectronics - 3D model - Small Outline Packages - . TSSOP8 – Mechanical data-
click to zoom

M24SR16-YDW6T/2 Details

  • Manufacturer Part Number:

    M24SR16-YDW6T/2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

M24SR16-YDW6T/2 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the M24SR16-YDW6T/2 is 1.4 MHz.
  • The M24SR16-YDW6T/2 uses a time-division multiplexing (TDM) approach to handle simultaneous read and write operations, ensuring that both operations can be performed without conflicts.
  • The typical current consumption of the M24SR16-YDW6T/2 is 2.5 mA at 1.4 MHz, with a maximum current consumption of 5 mA.
  • The M24SR16-YDW6T/2 has a data retention of 40 years at 25°C, and can withstand up to 1 million write cycles.
  • The M24SR16-YDW6T/2 operates over a temperature range of -40°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24SR16-YDW6T/2 Overview

Use the download button to access the M24SR16-YDW6T/2 schematic symbol, PCB footprint, and 3D model.
