M29F200FB55M3F2 - Alliance Memory

Description: NOR Flash NOR Flash , PARALLEL, 2M , SOP 44PIN, 55ns, -40-+1258C, BOTTOM, Tape and Reel

Download M29F200FB55M3F2 Model

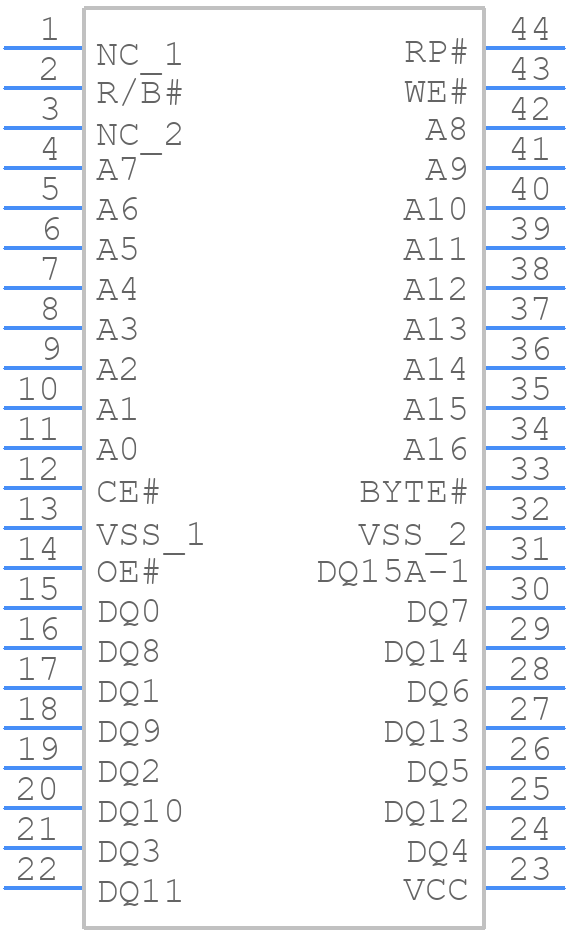

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

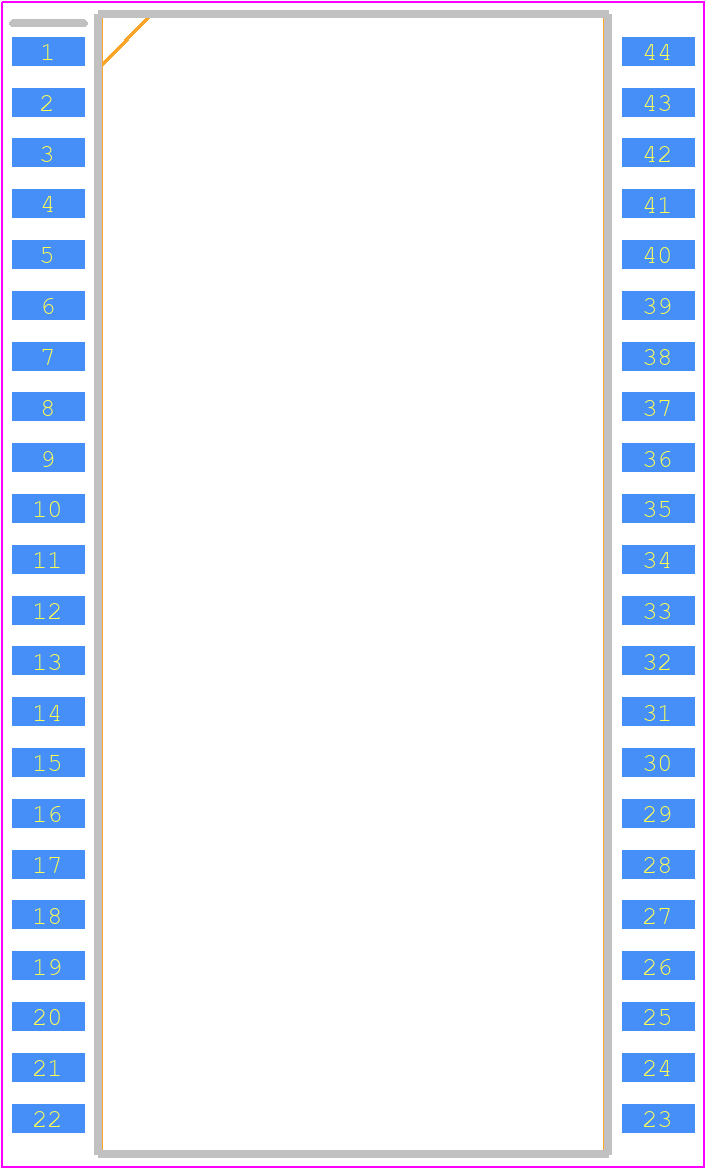

PCB Footprints
M29F200FB55M3F2 - Alliance Memory PCB footprint - Small Outline Packages - Small Outline Packages - 44-Lead Small-Outline – 500 Mil
click to zoom
3D Models
M29F200FB55M3F2 - Alliance Memory  - 3D model - Small Outline Packages - 44-Lead Small-Outline – 500 Mil
click to zoom

M29F200FB55M3F2 Details

  • Manufacturer Part Number:

    M29F200FB55M3F2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4.15

  • Access Time-Max:

    55 ns

  • Alternate Memory Width:

    8

  • Boot Block:

    BOTTOM

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G44

  • Length:

    28.5 mm

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Sectors/Size:

    1,2,1,3

  • Number of Terminals:

    44

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP44,.63

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    5 V

  • Ready/Busy:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3 mm

  • Sector Size:

    16K,8K,32K,64K

  • Standby Current-Max:

    0.00012 A

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    12.6 mm
