M2GL005-VF256 - Microsemi Corporation

Description: FPGA IGLOO®2 Family 6060 Cells 1.2V 256-Pin VFBGA Tray

Download M2GL005-VF256 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M2GL005-VF256 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

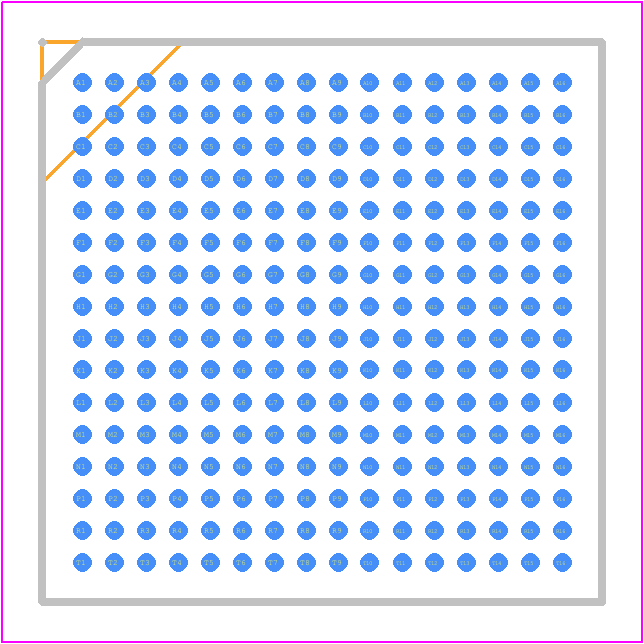

M2GL005-VF256 - Microsemi Corporation PCB footprint - BGA - BGA - VF256
click to zoom
3D Models
M2GL005-VF256 - Microsemi Corporation - 3D model - BGA - VF256
click to zoom

M2GL005-VF256 Details

  • Manufacturer Part Number:

    M2GL005-VF256

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    14 X 14 MM, 0.80 MM PITCH, VFBGA-256

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    14 mm

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.56 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    20

  • Width:

    14 mm

M2GL005-VF256 Frequently Asked Questions (FAQs)

  • Microsemi provides a reference design guide for PCB layout and thermal management in the 'M2GL005-VF256 PCB Design and Package Guidelines' document. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • Microsemi provides a Secure Boot and Firmware Encryption Guide for the M2GL005-VF256, which outlines the steps to implement secure boot and firmware encryption using the device's built-in security features and tools like Libero SoC and the Microsemi Secure Boot Utility.
  • While the M2GL005-VF256 is not specifically designed for high-reliability or radiation-hardened applications, Microsemi provides guidance on using the device in such environments through their 'M2GL005-VF256 Radiation and High-Reliability Application Notes' document. Engineers should carefully review this document to understand the limitations and necessary precautions.
  • Microsemi provides power management guidelines and recommendations in the 'M2GL005-VF256 Power Management Guide'. Engineers can optimize power consumption by using the device's power-saving features, such as clock gating and dynamic voltage and frequency scaling, and by implementing efficient power management techniques in their design.
  • Microsemi offers a range of development tools and software support for the M2GL005-VF256, including the Libero SoC design software, the Microsemi SoftConsole SDK, and the PolarFire SoC FPGA Icicle Kit. Engineers can also leverage third-party tools and IP cores from the Microsemi Partner Network.
