17 X 17 MM, 0.80 MM PITCH, ROHS COMPLIANT, VFBGA-400
HTS Code:
8542.31.00.60
Manufacturer:
Microsemi Corporation (now Microchip)
JESD-30 Code:
S-PBGA-B400
Length:
17 mm
Moisture Sensitivity Level:
3
Number of Terminals:
400
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max:
1.51 mm
Supply Voltage-Max:
1.26 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
17 mm
M2GL005-VFG400I Frequently Asked Questions (FAQs)
Microsemi provides a reference design guide for the M2GL005-VFG400I, which includes recommended PCB layout and thermal management guidelines to ensure optimal performance and reliability.
Microsemi provides application notes and design guides that provide guidance on implementing CDC in FPGA designs, including the M2GL005-VFG400I. Additionally, the device's clock management features, such as the clock manager and phase-locked loops (PLLs), can be used to simplify CDC implementation.
The power consumption and thermal characteristics of the M2GL005-VFG400I are dependent on the specific application and usage. Microsemi provides power estimation tools and thermal models to help designers estimate power consumption and thermal characteristics. Additionally, the device's power management features, such as power gating and dynamic voltage and frequency scaling, can be used to reduce power consumption.
The M2GL005-VFG400I has built-in security features, such as secure boot, encryption, and authentication. Microsemi also provides a range of security IP cores and design guides to help designers implement secure designs. Additionally, the device's FPGA fabric can be used to implement custom security solutions.
Microsemi provides radiation testing and characterization data for the M2GL005-VFG400I, as well as design guides and application notes on radiation effects and mitigation strategies. The device's FPGA fabric and built-in features, such as error correction and detection, can be used to mitigate radiation effects.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2GL005-VFG400I Overview

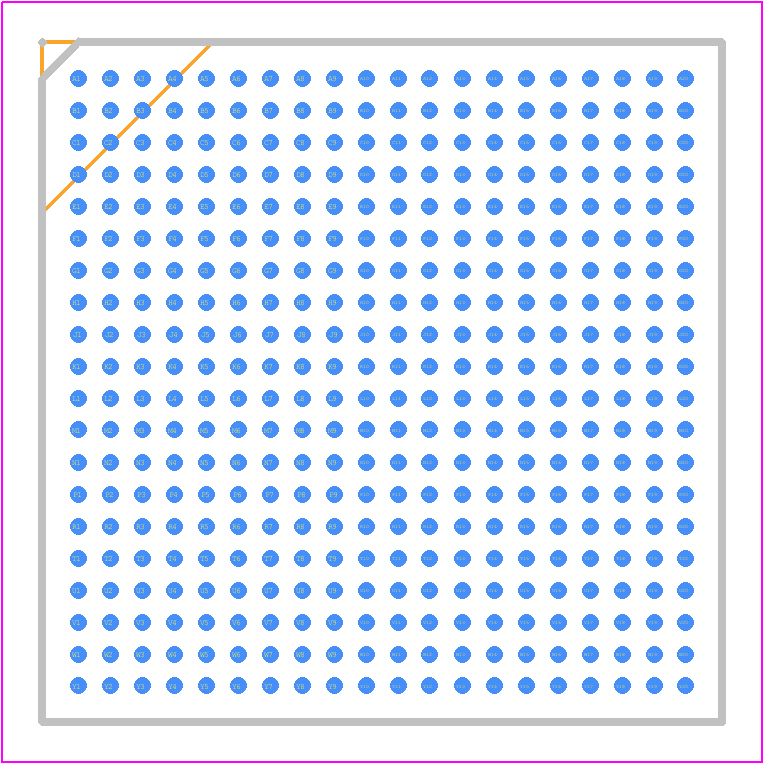

Use the download button to access the M2GL005-VFG400I schematic symbol, PCB footprint, and 3D model.
