M2GL025-VF400I - Microchip

Description: FPGA IGLOO®2 Family 27696 Cells 1.2V 400-Pin VFBGA Tray

Download M2GL025-VF400I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M2GL025-VF400I - Microchip - PCB symbol
click to zoom
PCB Footprints

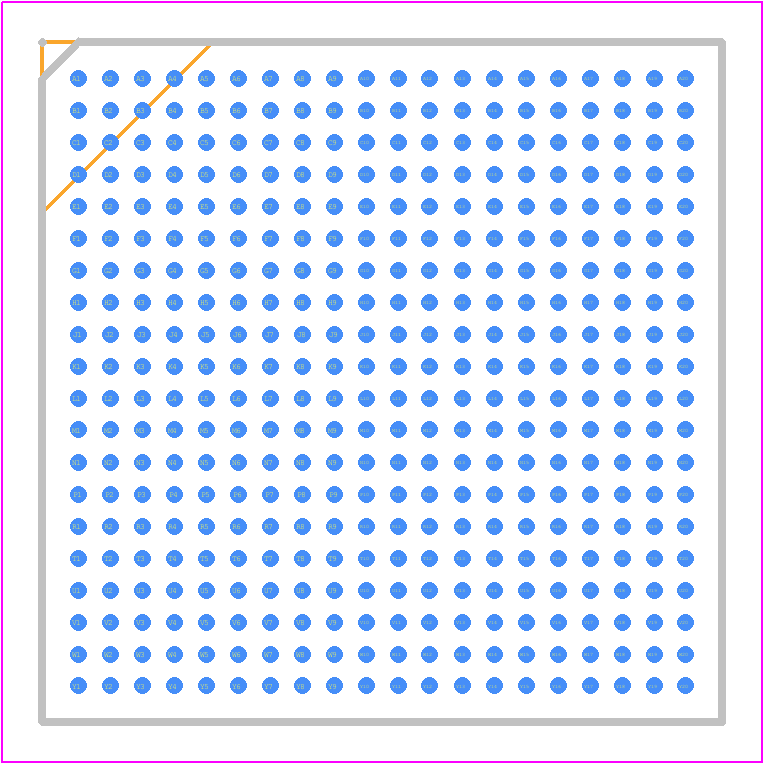

M2GL025-VF400I - Microchip PCB footprint - BGA - BGA - BGA(VF400)_2021
click to zoom
3D Models
M2GL025-VF400I - Microchip - 3D model - BGA - BGA(VF400)_2021
click to zoom

M2GL025-VF400I Details

  • Manufacturer Part Number:

    M2GL025-VF400I

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    LFBGA-400

  • Country Of Origin:

    South Korea

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • JESD-30 Code:

    S-PBGA-B400

  • JESD-609 Code:

    e0

  • Length:

    17 mm

  • Number of Inputs:

    207

  • Number of Logic Cells:

    27696

  • Number of Outputs:

    207

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.51 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn63Pb37)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

M2GL025-VF400I Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN575, which includes guidelines for signal routing, power supply decoupling, and thermal management.
  • The M2GL025-VF400I has a built-in POR circuit, but it's recommended to add an external POR circuit using a voltage supervisor IC, such as the MCP809, to ensure reliable reset operation.
  • The M2GL025-VF400I is rated for industrial temperature range operation, which is -40°C to +85°C. However, it's recommended to derate the operating temperature based on the specific application and thermal management.
  • To optimize the M2GL025-VF400I for low power consumption, use the power-saving features such as clock gating, dynamic voltage and frequency scaling, and sleep modes. Additionally, optimize the firmware to minimize active mode operation and use low-power peripherals.
  • The recommended oscillator crystal frequency is 12 MHz, and the load capacitance is 18 pF. However, it's recommended to consult the crystal manufacturer's datasheet for specific recommendations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M2GL025-VF400I Overview

Use the download button to access the M2GL025-VF400I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2GL0, or try a keyword search, such as Field Programmable Gate Arrays
