Microsemi provides a PCB design guide for the M2GL025T-VFG400I, which recommends a 4-layer or 6-layer stackup with specific layer assignments and spacing. It's essential to follow these guidelines to ensure signal integrity and minimize electromagnetic interference (EMI).
Microsemi recommends using an external POR circuit with a voltage supervisor IC, such as the MIC803, to ensure a reliable power-on reset. The POR circuit should be designed to meet the FPGA's power-up sequencing requirements and provide a clean reset signal.
The M2GL025T-VFG400I has a thermal design power (TDP) of 2.5W. To manage thermal dissipation, use a heat sink with a thermal interface material, and ensure good airflow around the device. Follow Microsemi's thermal management guidelines for PCB design and component placement.
Use Microsemi's Libero SoC design software to optimize the clocking architecture. Implement a clock tree with a single, high-quality clock source, and use clock domain crossing (CDC) techniques to minimize jitter and skew. Additionally, follow Microsemi's guidelines for clock signal routing and termination.
The M2GL025T-VFG400I has built-in security features, including AES encryption, secure boot, and tamper detection. Implement these features using Microsemi's Libero SoC design software and the PolarFire SoC Security User Guide. Additionally, follow Microsemi's guidelines for secure coding practices and key management.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2GL025T-VFG400I Overview

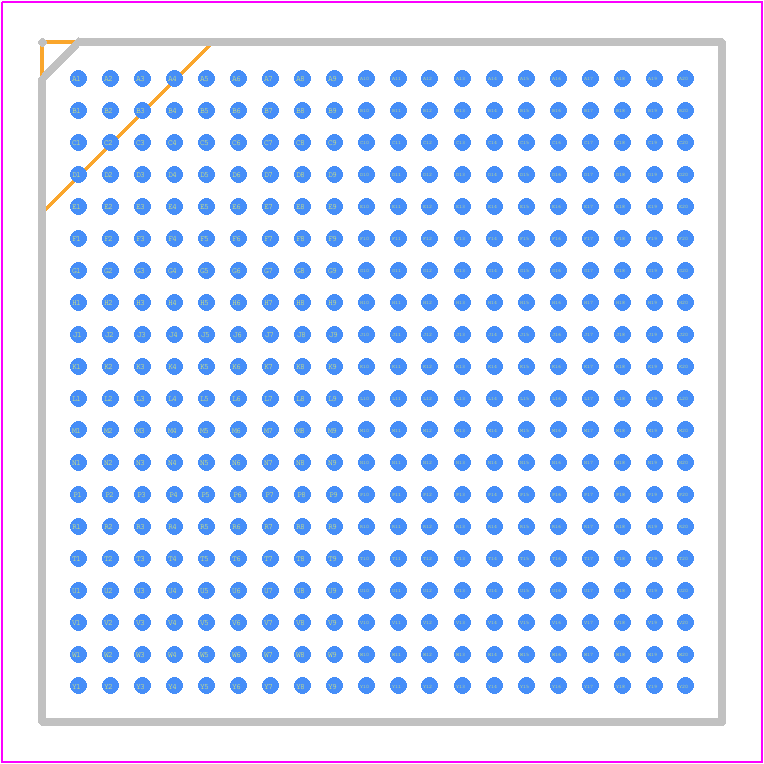

Use the download button to access the M2GL025T-VFG400I schematic symbol, PCB footprint, and 3D model.
