17 X 17 MM, 0.80 MM PITCH, ROHS COMPLIANT, VFBGA-400
HTS Code:
8542.31.00.60
Manufacturer:
Microsemi Corporation (now Microchip)
JESD-30 Code:
S-PBGA-B400
Length:
17 mm
Moisture Sensitivity Level:
3
Number of Terminals:
400
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max:
1.51 mm
Supply Voltage-Max:
1.26 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
17 mm
M2GL060-VFG400I Frequently Asked Questions (FAQs)
Microsemi provides a PCB design guide for the M2GL060-VFG400I, which includes guidelines for signal integrity, power distribution, and thermal management. It's recommended to follow these guidelines to ensure optimal performance and reliability.
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the Microsemi MIC2777, which provides a reset signal to the FPGA during power-up and power-down sequences. The POR circuit should be designed to ensure a clean and monotonic power-up sequence.
The M2GL060-VFG400I has a maximum junction temperature of 100°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and implement thermal management techniques such as thermal throttling or dynamic voltage and frequency scaling.
To optimize power consumption, use the FPGA's built-in power management features, such as dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, optimize the design to minimize switching activity, use low-power IP cores, and consider using a low-power FPGA fabric.
Microsemi provides a JTAG and boundary scan testing guide for the M2GL060-VFG400I, which includes procedures for testing and debugging the FPGA. It's recommended to follow these guidelines to ensure reliable testing and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2GL060-VFG400I Overview

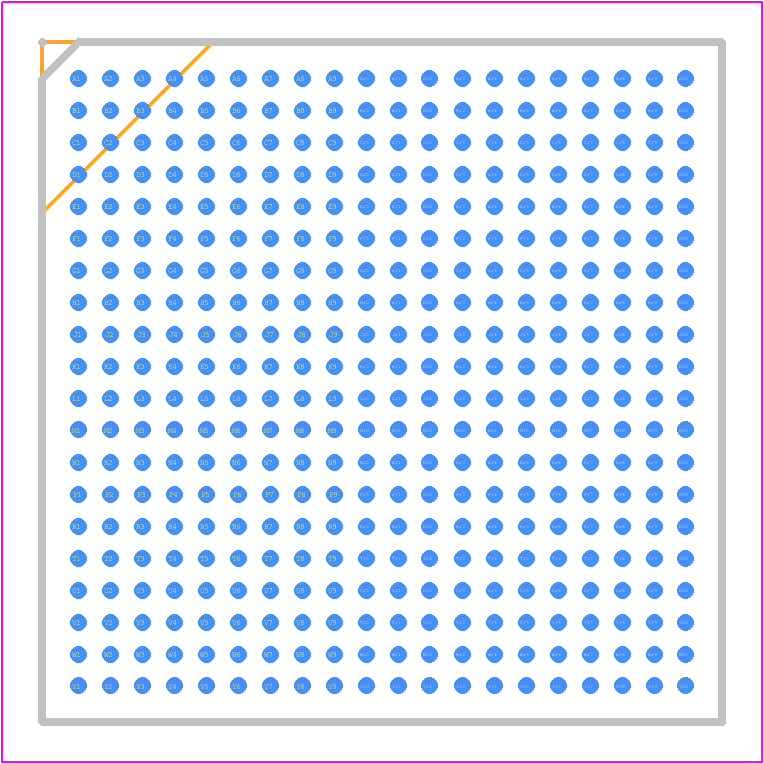

Use the download button to access the M2GL060-VFG400I schematic symbol, PCB footprint, and 3D model.
