Microsemi provides a reference design guide and thermal management application note that recommends a 4-layer PCB with a solid ground plane, thermal vias, and a heat sink to ensure optimal thermal performance and signal integrity.
Microsemi provides a software development kit (SDK) and a user guide that explains how to use the Libero SoC Design Suite to configure and program the FPGA. Additionally, the SDK includes example designs and verification IP to help validate the implementation.
The M2GL150-FCS536 requires a specific power sequencing and voltage regulation scheme to ensure proper operation. Microsemi recommends using a power management IC (PMIC) that can provide the required voltage rails and sequencing, such as the Microsemi Power Manager (MPM) devices.
Microsemi provides guidelines for signal integrity and EMI mitigation in the datasheet and application notes. These include recommendations for PCB layout, routing, and termination, as well as the use of EMI filters and shielding.
The M2GL150-FCS536 is rated for commercial temperature range (0°C to 70°C) and industrial temperature range (-40°C to 100°C) operation. It can also withstand certain levels of vibration, shock, and humidity, as specified in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
M2GL150-FCS536 Overview

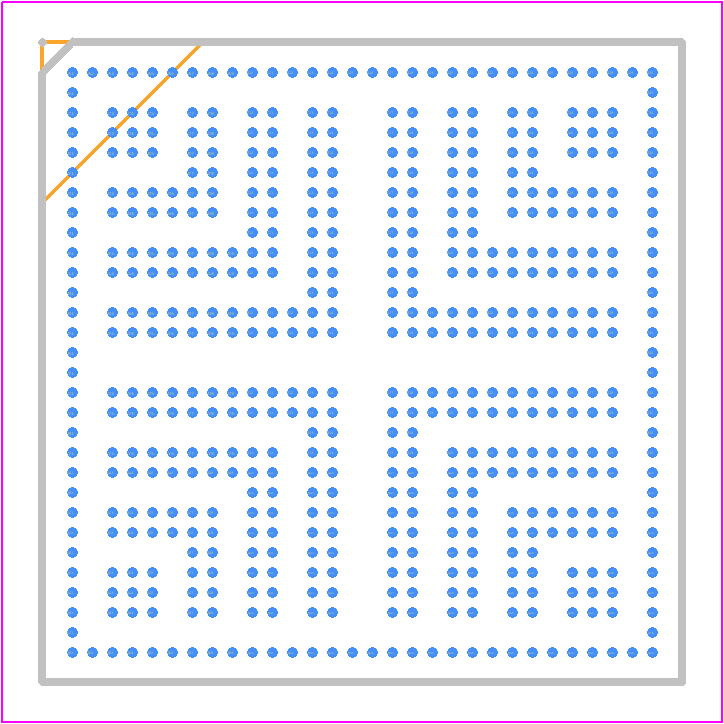

Use the download button to access the M2GL150-FCS536 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M2GL1,
or try a keyword search, such as Field Programmable Gate Arrays
