M2S150TS-1FCG1152I - Microchip

M2S150TS-1FCG1152I Details

• Manufacturer Part Number:

  M2S150TS-1FCG1152I

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

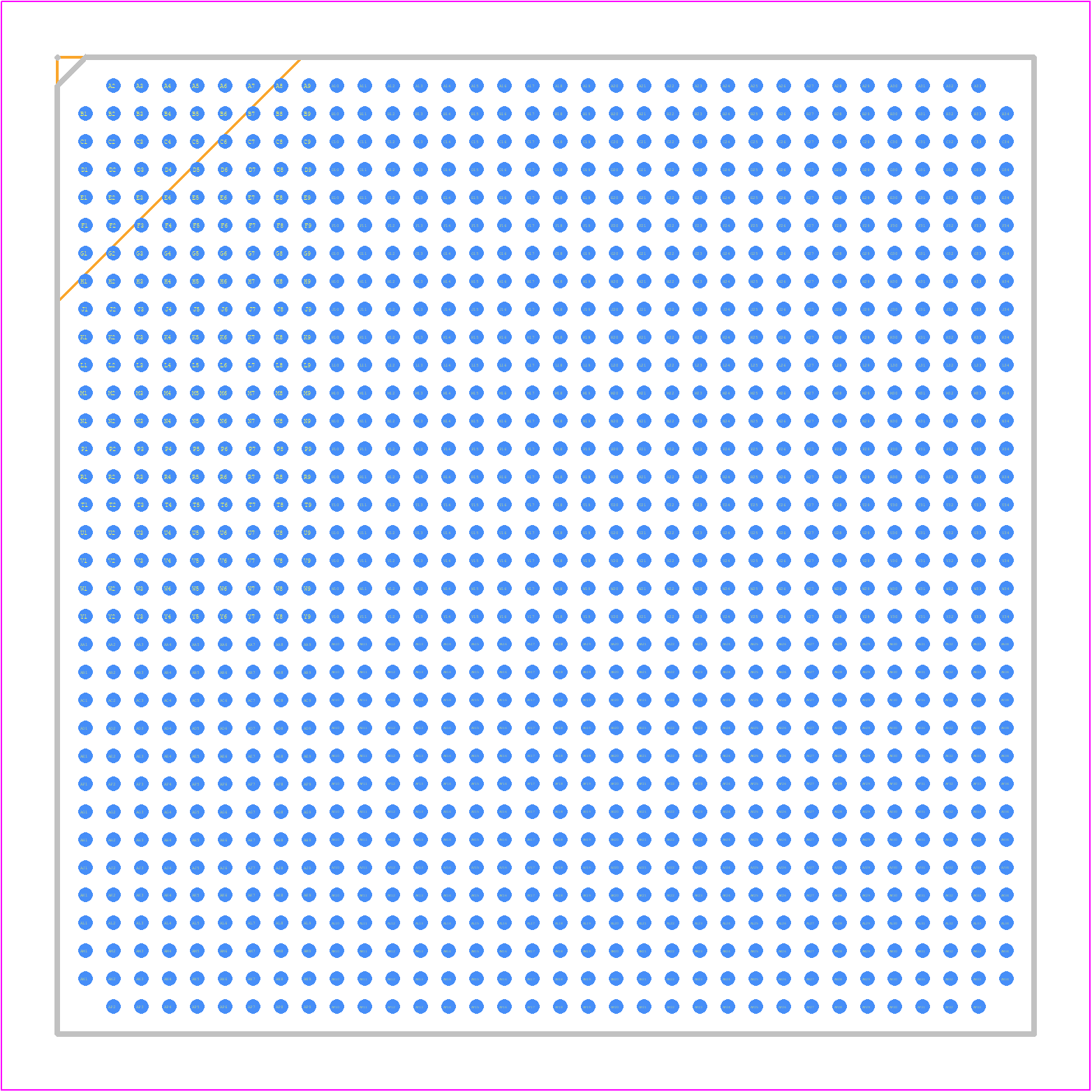

• Package Description:

  FCBGA-1152

• Pin Count:

  1152

• Manufacturer Package Code:

  BGA-1152

• Country Of Origin:

  South Korea

• HTS Code:

  8542.31.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  23

• JESD-30 Code:

  S-PBGA-B1152

• JESD-609 Code:

  e1

• Length:

  35 mm

• Moisture Sensitivity Level:

  4

• Number of Inputs:

  574

• Number of Logic Cells:

  146124

• Number of Outputs:

  574

• Number of Terminals:

  1152

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1152,34X34,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Packing Method:

  TRAY

• Peak Reflow Temperature (Cel):

  250

• Programmable Logic Type:

  FPGA SOC

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.9 mm

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS, 65 nm

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  35 mm
