M2S150TS-1FCV484 - Microsemi Corporation

M2S150TS-1FCV484 Details

• Manufacturer Part Number:

  M2S150TS-1FCV484

• Pbfree Code:

  No

• Part Life Cycle Code:

  Transferred

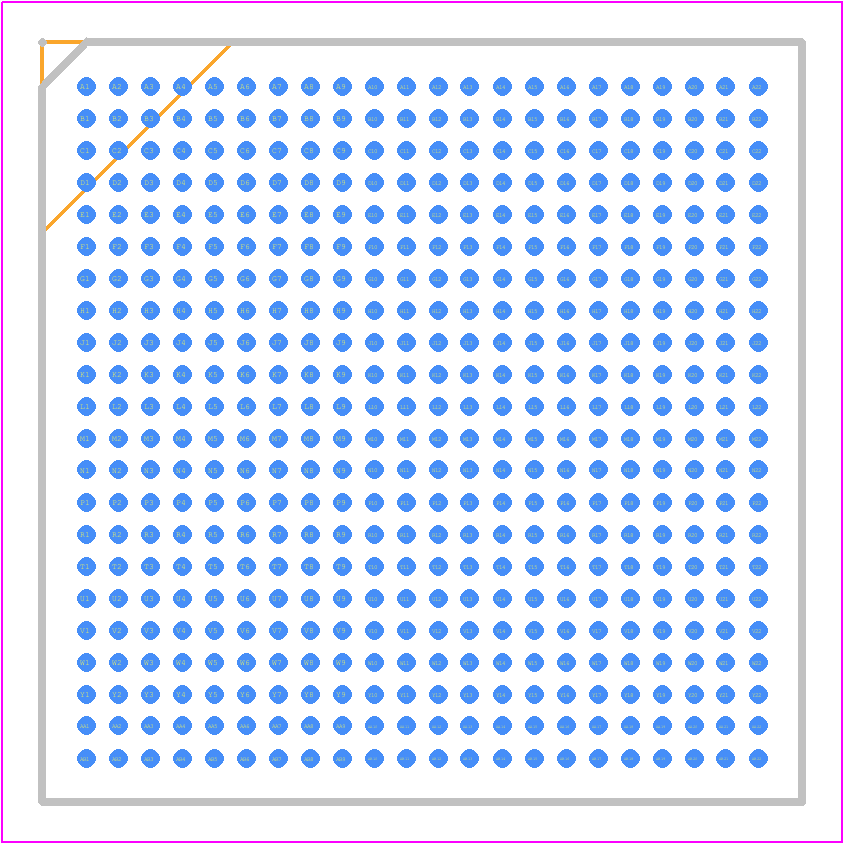

• Package Description:

  VFBGA-484

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• Additional Feature:

  LG-MIN, WD-MIN

• JESD-30 Code:

  S-PBGA-B484

• JESD-609 Code:

  e0

• Length:

  19 mm

• Number of Terminals:

  484

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA484,22X22,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  240

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  3.15 mm

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm
