M300-MV31045M1 - Harwin

Description: M300: 5+5 Pos Plug DIL Straight 3.2mm THT Connector Jackscrews

Download M300-MV31045M1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M300-MV31045M1 - Harwin - PCB symbol
click to zoom
PCB Footprints

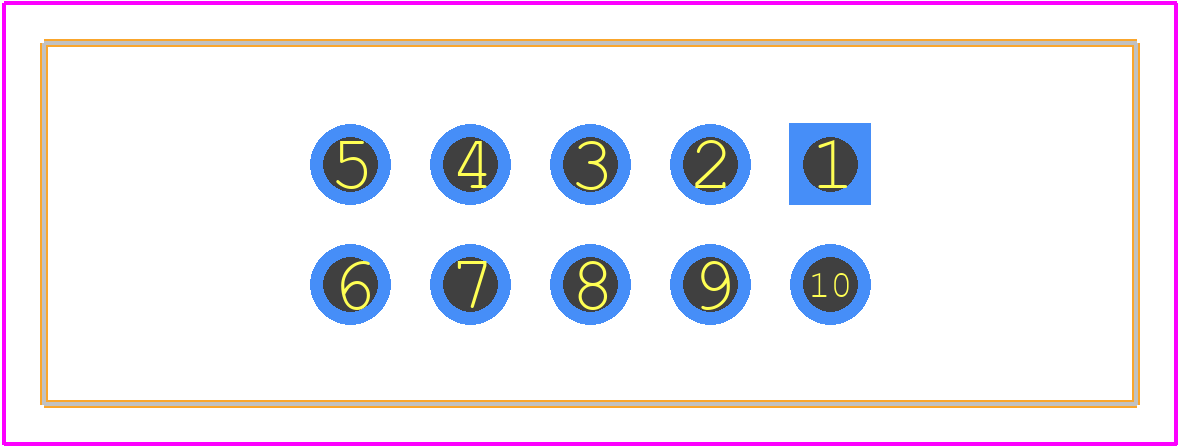

M300-MV31045M1 - Harwin PCB footprint - Other - Other - M300-MV31045M1-1
click to zoom
3D Models
M300-MV31045M1 - Harwin - 3D model - Other - M300-MV31045M1-1
click to zoom

M300-MV31045M1 Details

  • Manufacturer Part Number:

    M300-MV31045M1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Harwin

  • YTEOL:

    7.55

  • Body Breadth:

    0.354 inch

  • Body Depth:

    0.276 inch

  • Body Length:

    1.075 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • Contact Style:

    RND PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    10 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

M300-MV31045M1 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the PCB design and screw type to determine the optimal torque value.
  • Yes, the M300-MV31045M1 is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper PCB design, screwing, and cable management to minimize the risk of connector damage or disconnection.
  • The M300-MV31045M1 can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consider the temperature rating of the PCB, cables, and other components in the system to ensure reliable operation.
  • The M300-MV31045M1 has a sealed design and is suitable for use in harsh environments. However, it's crucial to ensure that the connector is properly sealed and that the system is designed to withstand the environmental conditions.
  • The maximum current rating for the M300-MV31045M1 is 3A per contact. However, it's essential to consider the PCB design, cable size, and system requirements to ensure reliable operation and prevent overheating.
